By TecMate

Battery charging tester - OptiMate Test TS-121

$99.95
$99.95
Tax included. Shipping calculated at checkout.
Brand: TecMate
Availability: Low stock: 3 left
SKU: TS-121
TexaBelt Tension Tester

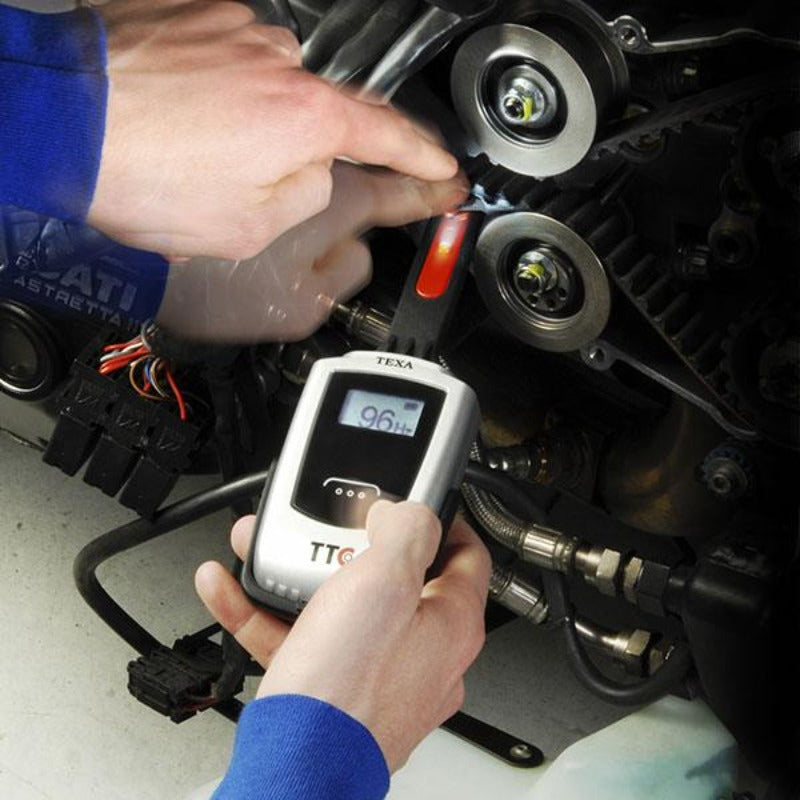

Belt Tension Tester - Moto-Tech Diagnostics
OptiMate Pro 1 DUO Battery Charger TM-650 - Moto-Tech Diagnostics
TecMateOptiMate Pro 1 DUO Battery Charger TM-650
OptiMate Test TS-121 - Moto-Tech Diagnostics
$99.95
$99.95

The ultimate pocket battery charging tester for on-vehicle battery performance & alternator voltage output testing.

Suitable for use with both 12V lead-acid and 12.8V LiFePO4 starter battery – Easy troubleshooting from cranking to charging!

  • For vehicles fitted with 12V AGM, GEL and STD lead-acid or 12.8V LFP / LiFePO4 starter battery.
  • As easy as 1-2-3, connect the battery charging tester to your battery, check state of charge, start engine tester displays cranking voltage and vehicle charge voltage simultaneously – 15 seconds is all you need!
  • Display cranking volts down to 6V and charge voltage range up to 15V – Check weak battery or overcharging with this Battery charging tester!
  • Easy to use! Connect with the included clips to the battery or connect to an installed SAE battery lead.

Easy to use!

  • Connect clips to the battery or connect to an installed SAE battery lead. Connect clips to the battery or connect to an installed SAE battery lead.
  • Check battery charge level. A low battery cranks (starts engine) poorly.
  • Start engine. OptiMate Battery charging tester records and indicates (for 20 sec) the lowest start volts.
  • With engine running, verify charging voltage from alternator and voltage regulator.

TIP: Low charge voltage causes poor battery performance. Too high charge voltage causes excessive gassing and will eventually damage a lead-acid battery. Too high charge voltage is FATAL for a LiFePO4 starter battery!

LENGTH: 40″/100cm

CHARGE CONNECTOR (INPUT): 2-pin SAE (+set battery clips)

OPERATION:  fully automatic

  • State of charge result in GREEN / RED LED results, indication of lowest start Volts when engine starts (20 sec) and running voltage from alternator & voltage regulator.

CABLE RATING: SPT-2W 16 AWG (1.32mm2)

FUSE: No fuse

USE: -40°C/-40°F very low temperature, remains flexible at ‘below freezing’ temperatures

STYLE: Fully enclosed electronic circuitry with multiple LEDs, SAE charge connector

WARRANTY: 3-year limited replacement warranty
