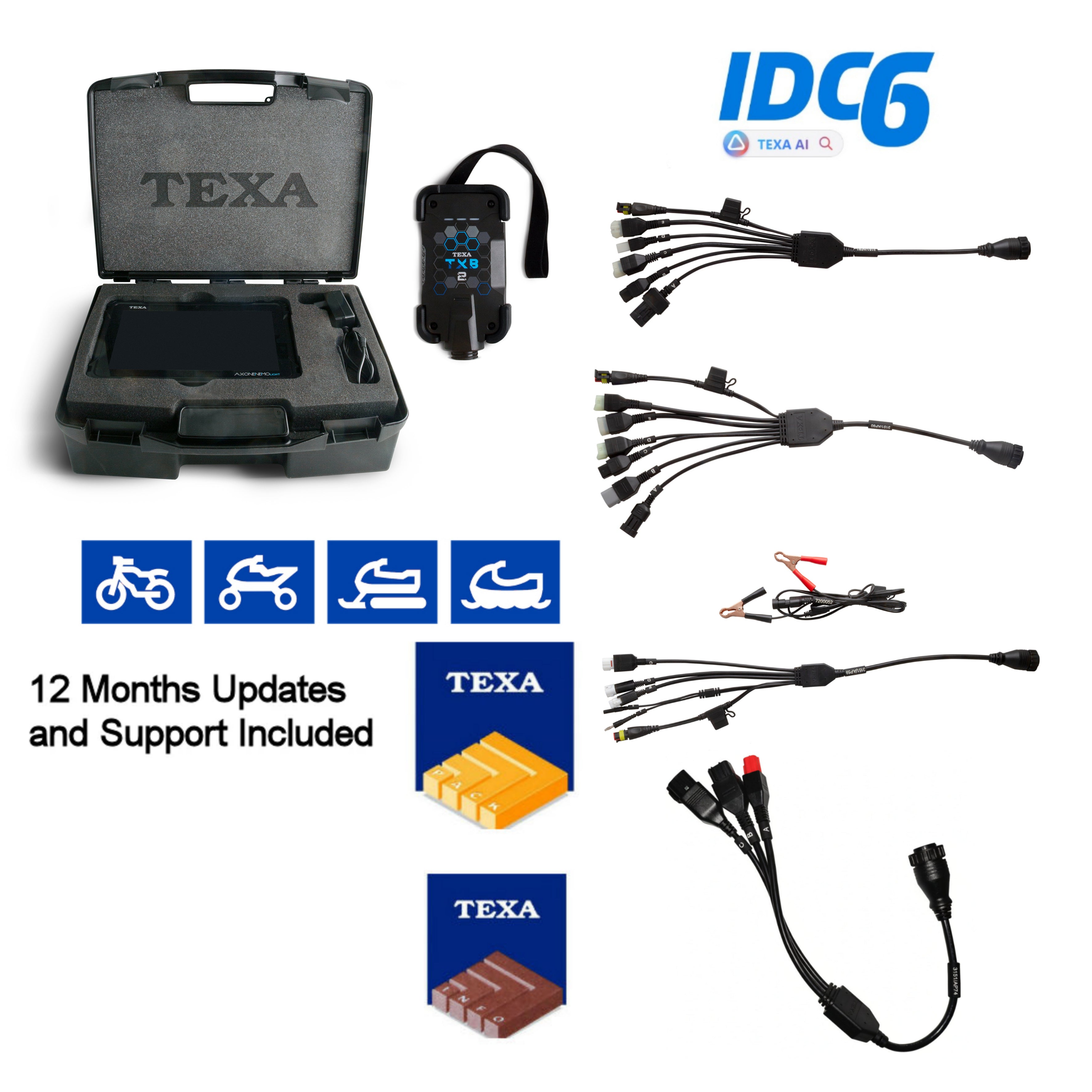

Package includes:-
-
Axone Nemo Light Tablet
-
TXB 2 VCI
-
Bike Software Licence
-
12 Months annual updates and support subscriptions
-
Cables - see below
- Delivered ready to go.
- Software fully installed and activated!
- Unbox, set up your wifi - get diagnosing!
This comprehensive guide provides detailed information about the Texa diagnostic cables Included in the Axone Nemo Light Bike Platinum PLUS Package.
What is this system comprised of?
|
Axone Nemo Light with IDC6 Powersports software. Axone Nemo Light communicates either via USB cable or wirelessly via Bluetooth with the TXB 2 VCI. Also includes 12 months updates! |
 |
|
TXB2 VCI (vehicle communication Interface). Cables provide the connection between the TXB2 and your diagnostic connector on the system you are working with. |
 |
|

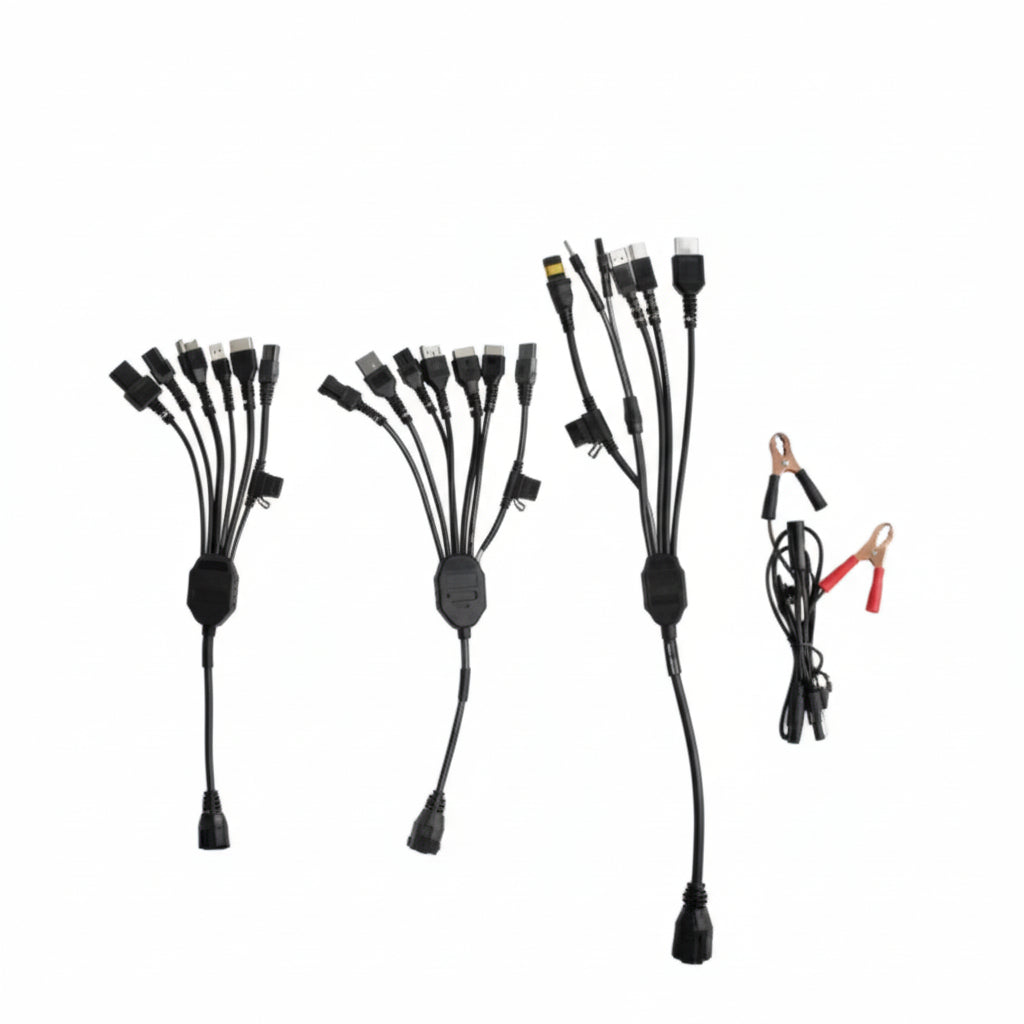

This kit includes these cables:- AP05 (Triumph, BMW, Victory etc) see below for multi cable information A full breakdown of these cables can be viewed below. Various other cables are available to suit your needs. |
|
|

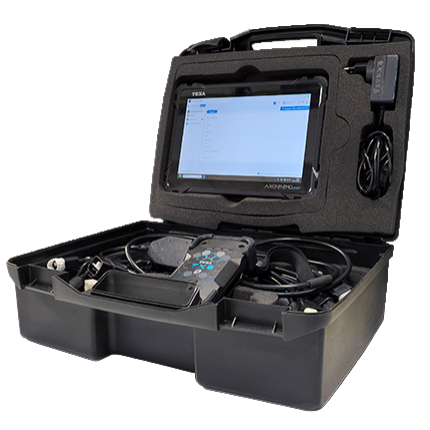

Includes foam lined case houses the kit securely. USB/USB C Cable AU Mains Power supply |
|
Texa Diagnostic Cable Part Numbers & Descriptions for Axone Nemo Light Bike Platinum PLUS Package.
|
AP05:-
AJP, ARIIC, BETAMOTOR, BMW, BRIXTON MOTORCYCLES, BROSE, BROUGH SUPERIOR, CFMOTO, FANTIC MOTOR, FB MONDIAL, GRECAV, HYOSUNG, ITALJET, JOHN DEERE, KAWASAKI, KEEWAY, KL, KSR MOTO, KYMCO, LAMBRETTA, LEXMOTO, MACBOR, MALAGUTI, MASH, MBP, MGK HELLENIC MOTOR, MH, NOX, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO COMMERCIAL VEHICLES, QUADIX, RIEJU, ROYAL ALLOY, SCORPA, SHERCO, SINNIS, SWM, SYM, TRIUMPH, VENT, VERVE MOTO, VICTORY, VOGE, XEV, ZONTES and most of the BOOM TRIKE vehicles.
|
|
|
AP59
Yamaha Multi Cable The cable is made up by six connectors: 4-pin (connector for the models with the diagnosis in CAN protocol), 3-pin male and female connectors for the models that require dual or single connection, a fourth and a fifth probe connector (male and female probes for the models that require dual or single connection) eg scooters and small commuters and a sixth 2-way connector (power supply). |
 |
|
AP74:-
ALL Euro 5> standard motorcycle OBD cable introduced from 2020 on - Required for any model with the Red Euro 5 OBD connector. BENELLI motorcycles injection system with CAN protocol, BRIXTON MOTORCYCLES. Parsun marine. Benelli Cable for Euro 5 Bosch ABS systems. |
 |
|
AP80:-
Directly usable with most bikes from Adiva, Aprilia, CFMoto, Derbi, Gas Gas, Gilera, Laverda, Malaguti, Moto Guzzi, Moto Morini, Piaggio, Sherco, Vespa & Voxan. Also works with Cagiva, Ducati and MV Agusta with Magneti Marelli ECUs. Kawasaki Cable for most bikes prior to 2010 (also some models after). Also usable with some BAJAJ bikes developed in collaboration with KAWASAKI. Suzuki Cable for all bikes produced after 2003 with 6-pin connector prior to Euro 5. Also fits ARCTIC CAT ATVs and KAWASAKI Epsilon 250. Honda Cable for all bikes with 4-pin connector from 2004 up to introduction of Euro 5 models. Kawasaki injection (4 pin) and ABS (6 pin) cable for most models produced from 2010 up to introduction of to Euro 5 models. Also compatible with some BAJAJ vehicles developed in collaboration with KAWASAKI.
|
 |
|
AP81:-
SYM Cable - Also compatible with TGB, some PEUGEOT LXR 200 and DAFRA Maxsym 400i, Next 250 and Citycom 300i models.
Daelim Cable - Compatible with DAELIM, DAFRA Roadwin 250R and Horizon 250 models. KTM Cable - Compatible with bikes from KTM Prior to Euro 5 models. Also Keihin equipped HUSQVARNA models. Prior to Euro 5 models. Kymco, also Kawasaki J300/J125 Euro 3 models (not Euro 4) Royal Enfield Euro 3/4 models. Older models use AP07, Euro 5 models require AP58. |
 |
|
7200052
Battery clamps |
 |
Other cables can be added to suit your needs:
Popular additional cables are:-
- AP23 Ducati
- AP37 BMW round connector
- AP57 Harley Davidson - 4 and 6 pin connections.
- AP60 Aprilia Dash connection 2017 up to euro 5 - Required for service reset.
- AP45 Polaris
- AP43 / AM47 AP56B CanAm, SeaDoo, BRP cables.
if adding EXTRA cables to your kit you may need this storage case
Please contact us to discuss options and additional cable requirements for your motorcycle diagnostic tool software based on your needs.
Prices will fluctuate depending on exchange rates - these can go up as well as down. Call to discuss your requirements and obtain a quote based on current costs.
Software features and functions are exactly the same as the PC based system. See here for PC based system.
The smart choice for a diagnosis accessible to all
This kit was specifically designed for the power sports market. With a compact and tough design, AXONE NEMO LIGHT guarantees high-level performance, essential for continuous use in the workshop.
Its operating system, Windows 11 Enterprise, is driven by an Intel N100 Quad Core processor, all displayed in a 10.1” bright display. Furthermore, it has 8 GB of RAM, optimal to manage the performances of the calculation system, and a 250 GB memory, which offers sufficient space to file data and applications.
Connectivity is guaranteed by the Wi-Fi and Bluetooth 5.2 modules, with quick and reliable access to the networks and tools.
| MANUFACTURER | TEXA S.p.A. |
| MODEL | AXONE NEMO LIGHT |
| PROCESSOR | Intel© N100 with standard dissipation |
| RAM | 8 GB DDR5 |
| HARD DISK | 250 GB with eMMC technology |
| BIOS | 64 Mbit Flash ROM, AMI BIOS |
| OPERATING SYSTEM | Windows™ 11 IoT Enterprise |
| VIDEO PERIPHERAL DEVICES | High-contrast ultra-wide view angle display Dimensions: 10.1" Resolution: 1920×1200 pixel High-sensitivity touch controller Fully laminated capacitive display |
| AUDIO PERIPHERAL DEVICES | 2 speakers |
| WIRELESS PERIPHERAL DEVICES | Wi-Fi: 6 (802.11ax) Bluetooth: 5.2 |
| I/O PERIPHERAL DEVICES | 1 USB Type A 2.0 1 USB Type A 3.0 1 micro HDMI |
| CAMERAS | Front: 2 Mpixel Rear: 5 Mpixel |
| LEDs | 1 green LED (system status) 1 red LED (charging / power supply status) |
| ROBUSTNESS | Rugged design |
| INTERNAL BATTERY | Rechargeable Li-ion 7.4 Vdc; 44.4 Wh; 6000 mAh |
| EXTERNAL POWER SUPPLY | From external power adapter: • Input: 100-240 Vac; 0.8 A; 50-60 Hz • Output: 12 V – 3.0 A |
| OPERATING TEMPERATURE | 0 ÷ 40 °C |
Call to discuss your requirements.
