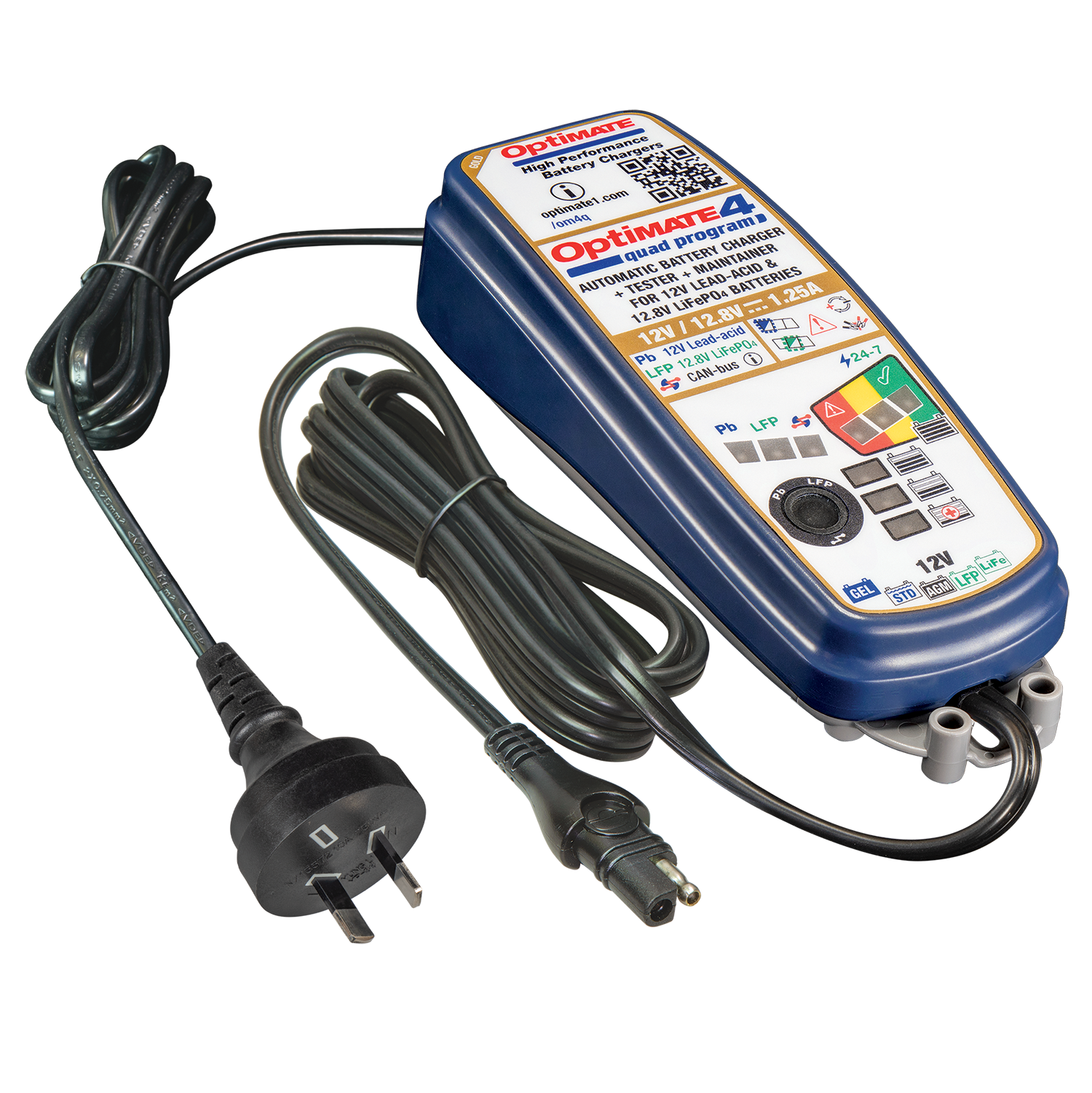

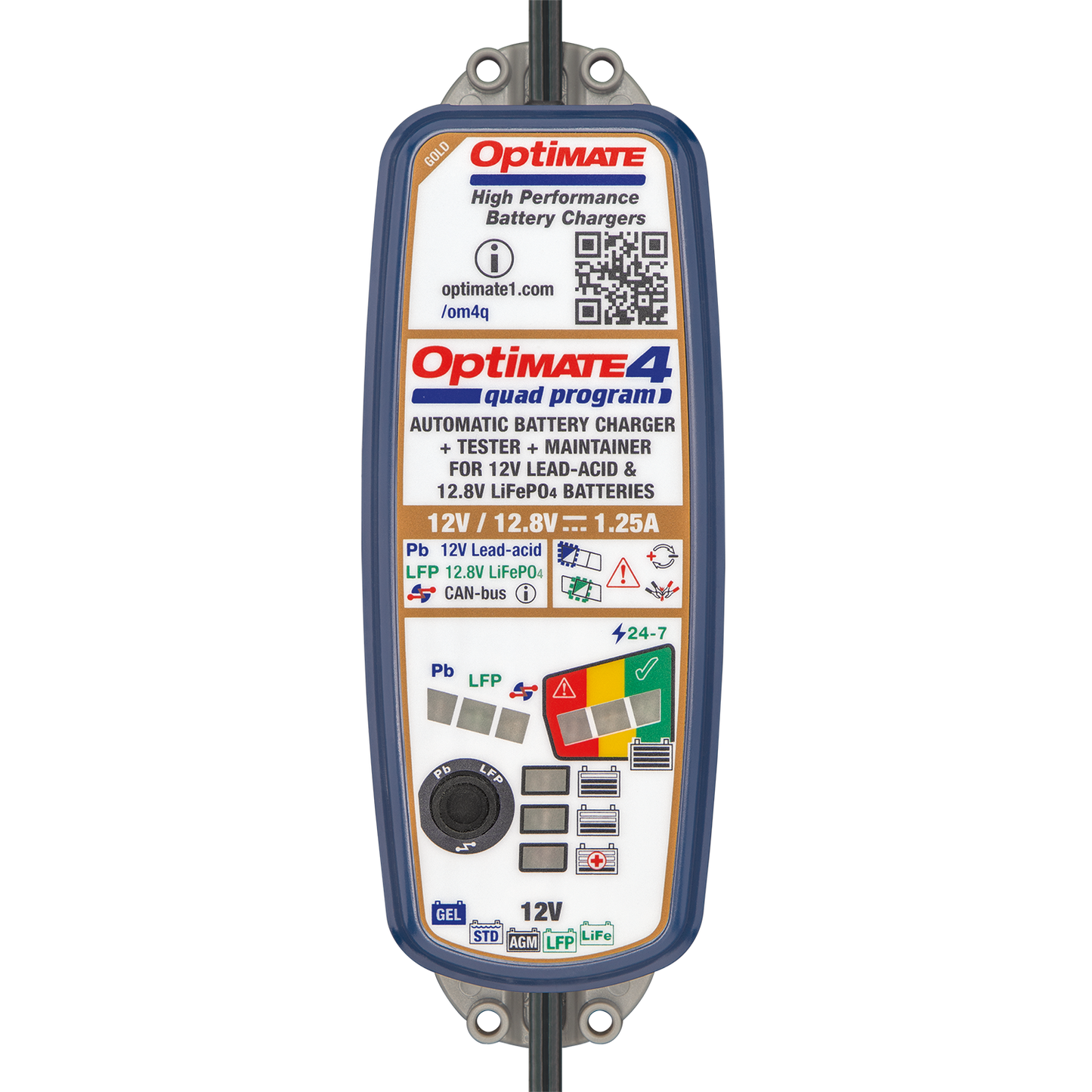

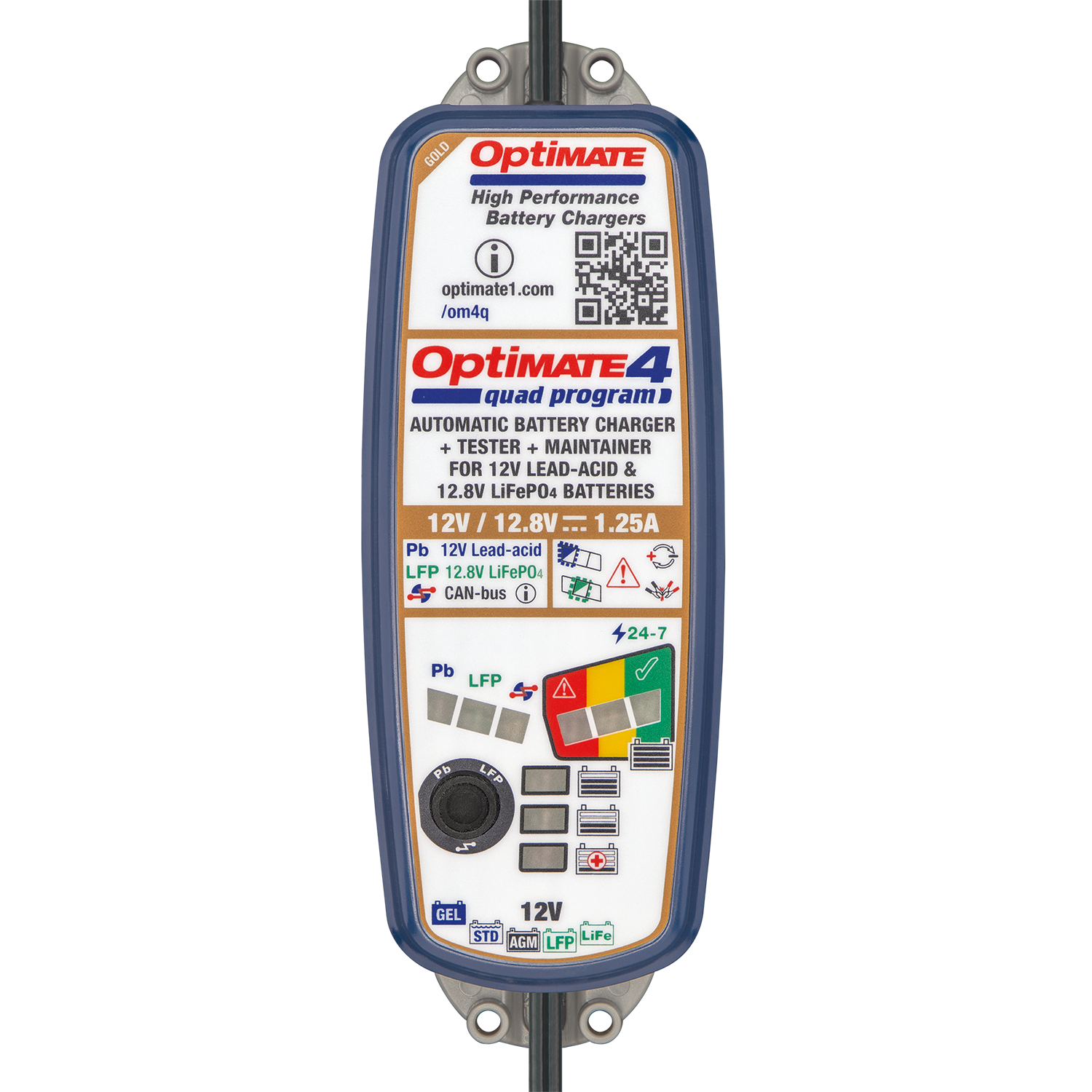

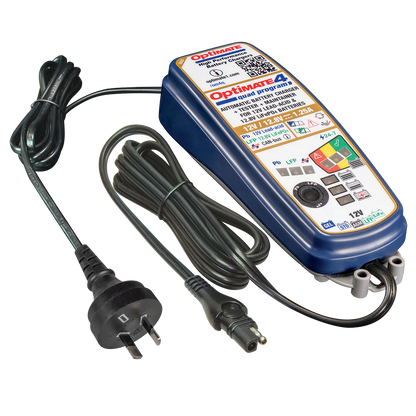

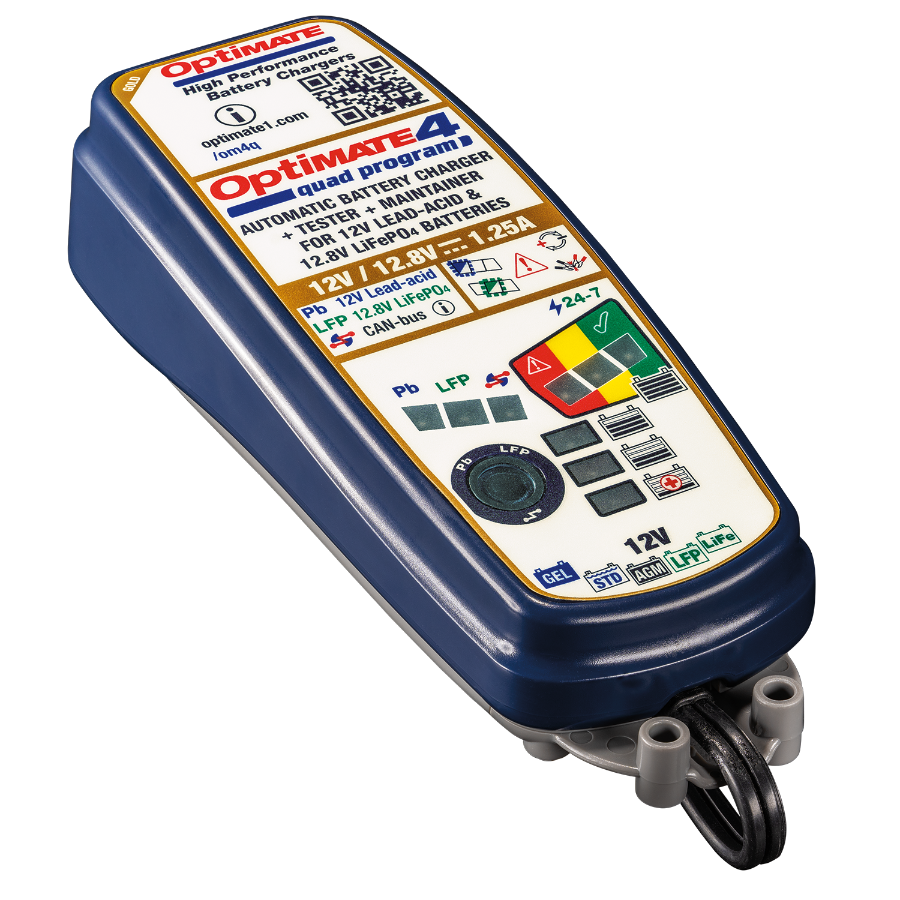

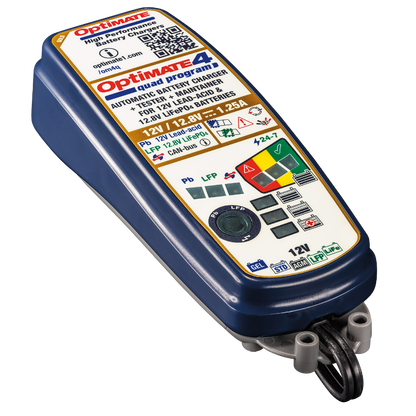

OptiMate 4 Quad program with 2 x CAN BUS modes

OptiMate 4 Quad Program is the ultimate battery charger for the high technology 12V / 12.8V battery in your adventure, touring, cruiser or performance motorcycle, or ATV, Side by Side and personal watercraft.– the world’s most advanced power-sport battery charger!

Quad program:- select program 1 or 3 to charge battery direct or through a live (hot) 12V socket*, or program 2 or 4 to charge through BMW CAN-bus controlled 12V socket*.
* requires optional cable accessory to connect to socket. - See below

O-19 90 Degree adapter	O-09 Straight adapter	O-02 Dual size adapter

CAN bus mode is ONLY required when using with BMW motorcycle when connecting via the accessory socket fitted from factory.

CAN bus mode is not required when using OptiMate 4 with any other vehicle whether it has CAN bus or not.

The Can bus feature is purely to force the BMW accessory socket to stay live, otherwise the ECU shuts down the accessory socket after around 15 minutes. This means your OptiMate will not be maintaining your battery.

MORE FEATURES:

For all 12V power sport battery types including lead-acid (Pb) > STD (with filler caps), AGM & GEL (sealed VRLA) ) and Li-Ion made with LiFePO4 / LFP technology.

BMW motorcycle CAN-bus compatible, automatic activation.

Smart desulphation from 0.5V, for Pb battery.

Safe to leave connected. Full electronic protection.

Maintains battery at full charge and good health.

Low voltage recovery & BMS reset, for LFP battery.

Tests battery state of health.

Energy saving technology √ Stand-by power less than 0.5W √ Efficient 24-7 battery maintenance

Weatherproof. Rated for use down to -40°C / -40°F.

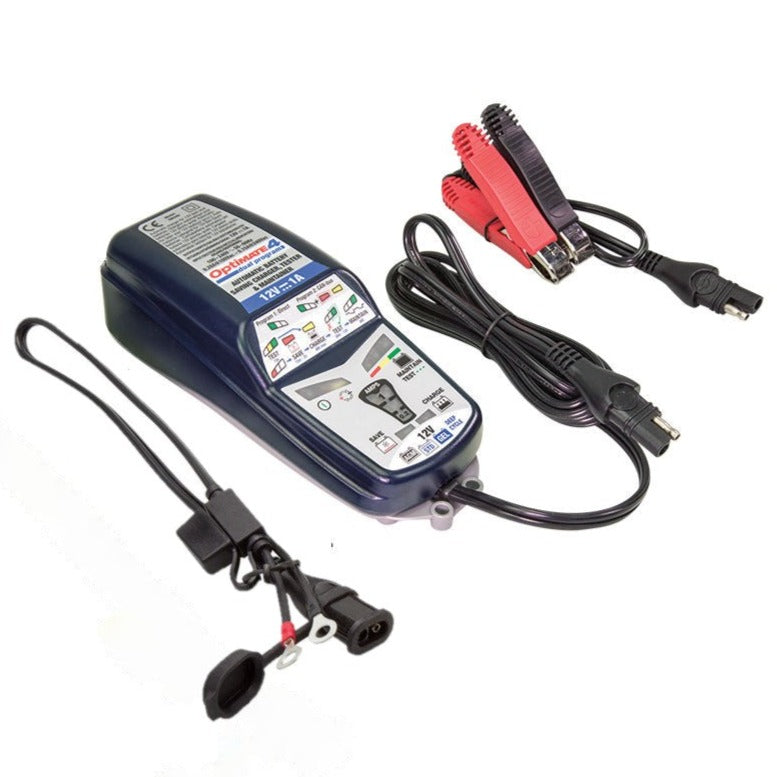

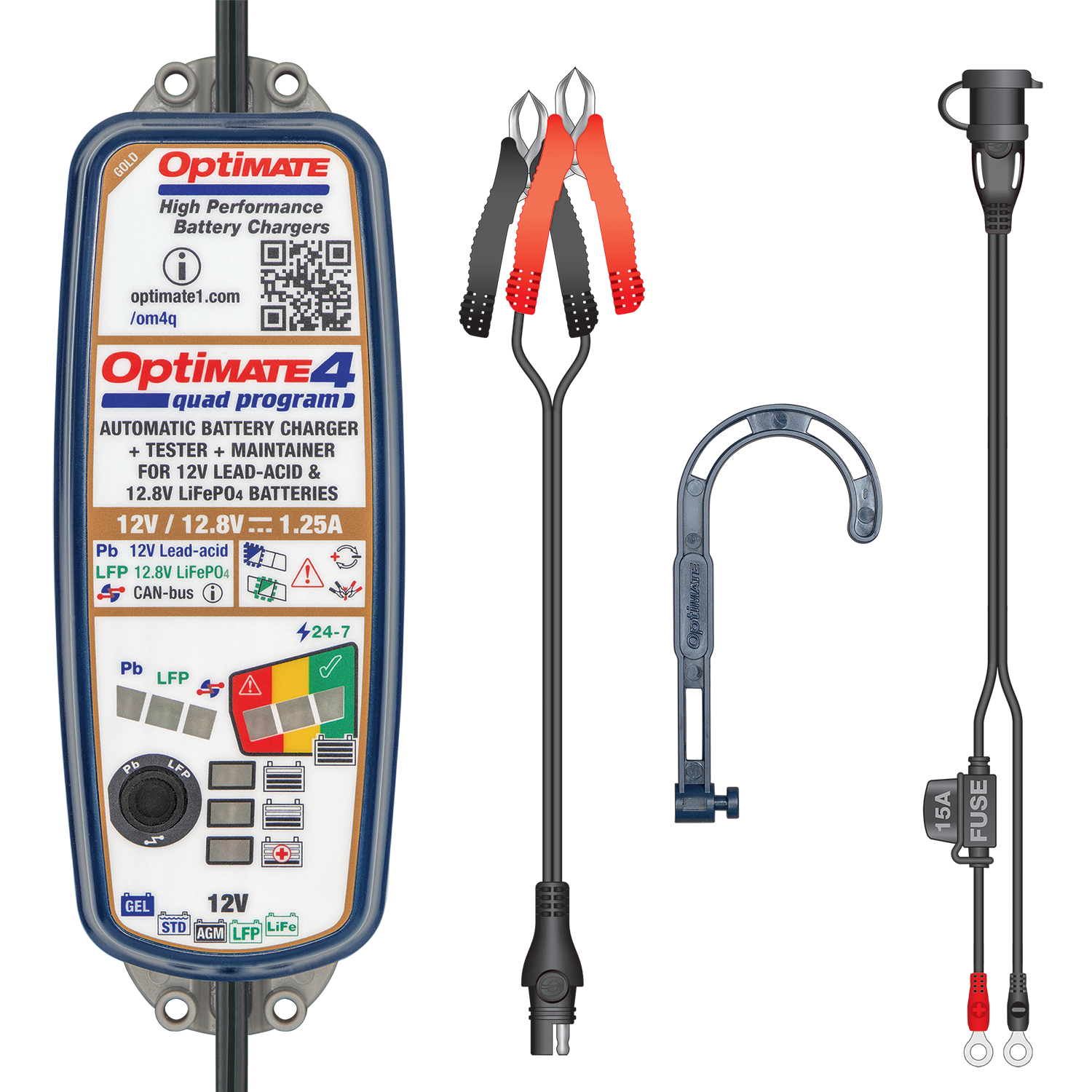

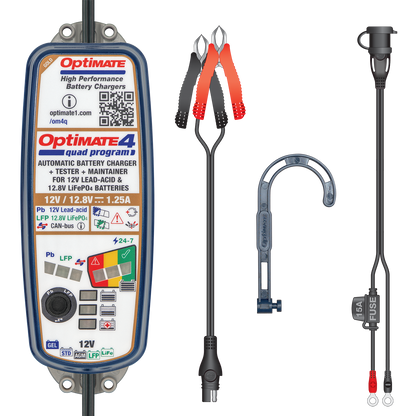

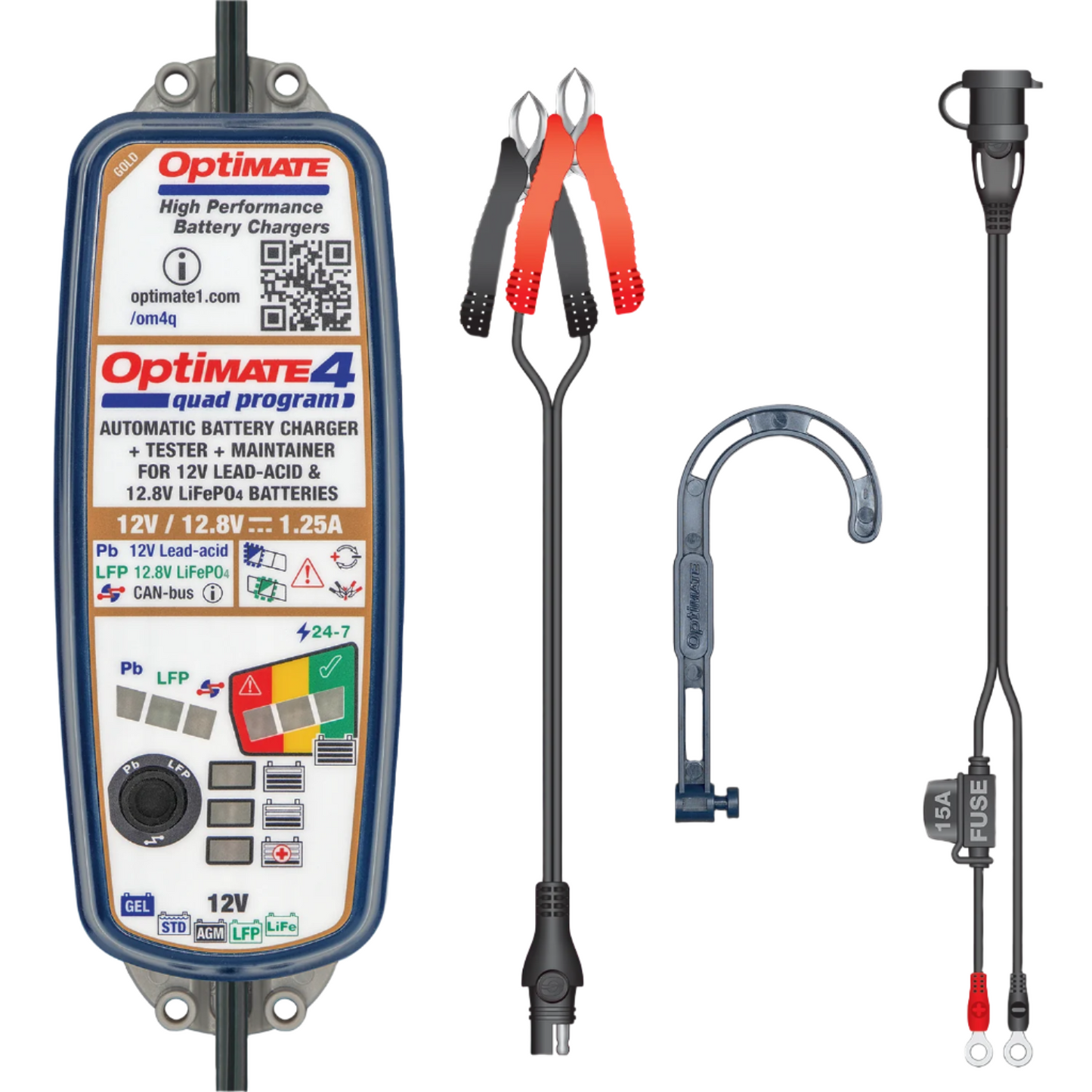

Includes:

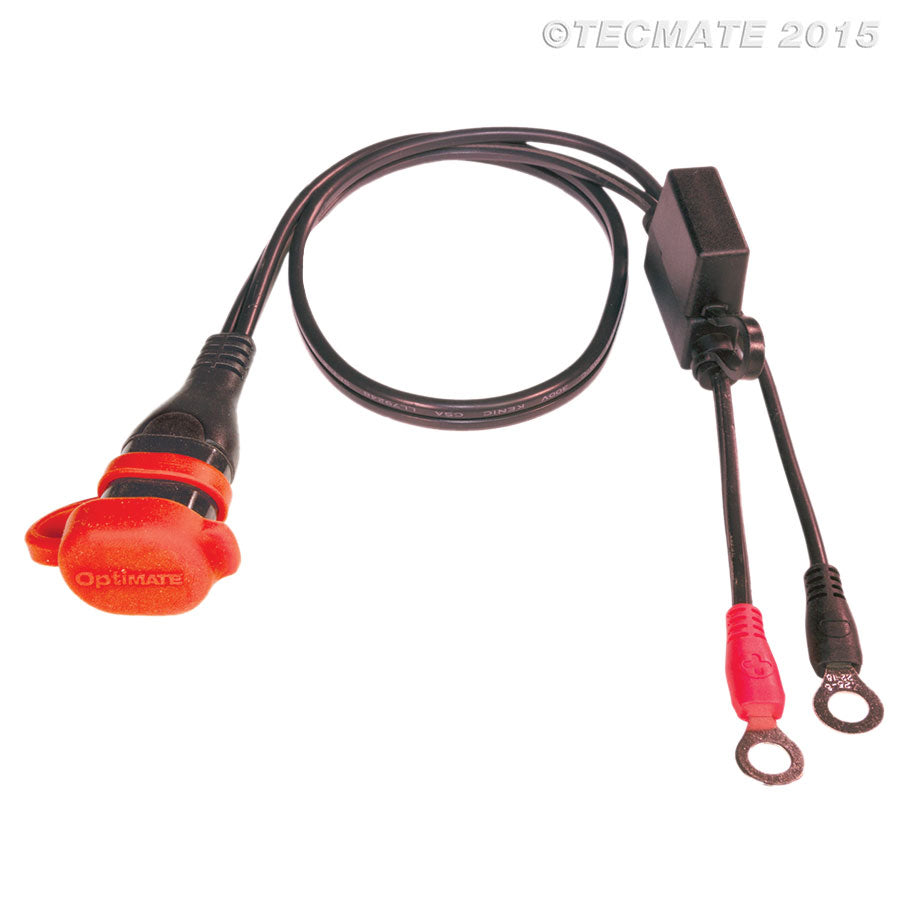

• SAE-71 weatherproof fused ringlet set

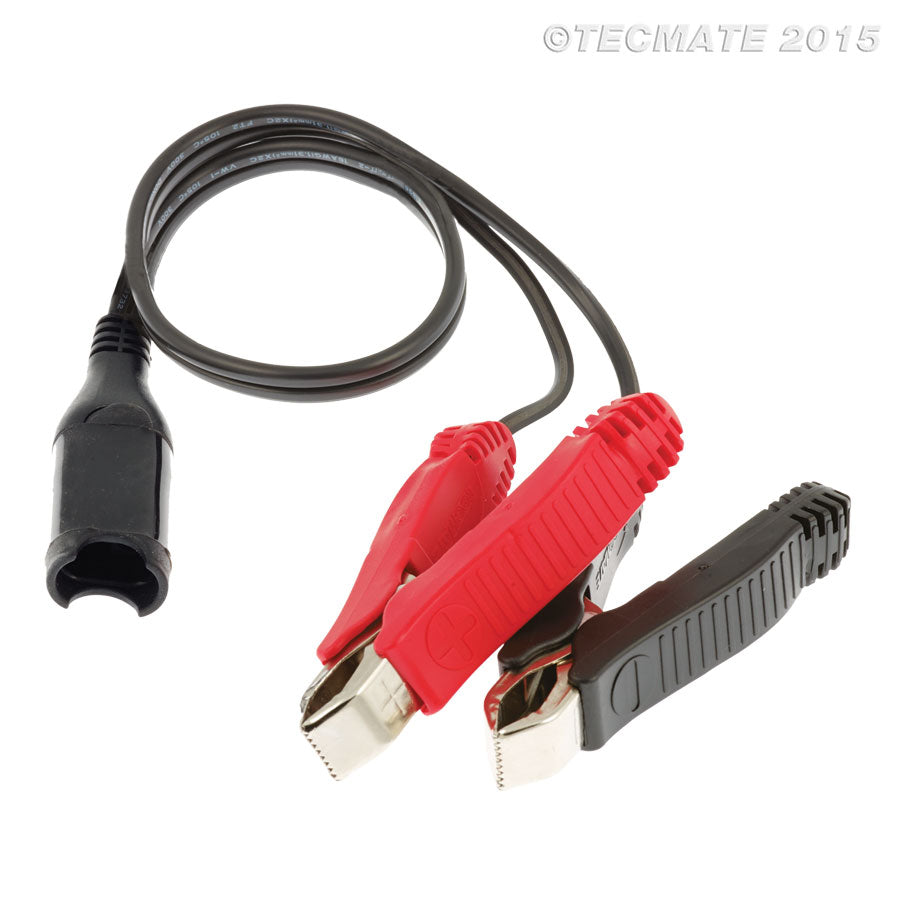

• SAE-74 clamps set for bench charging

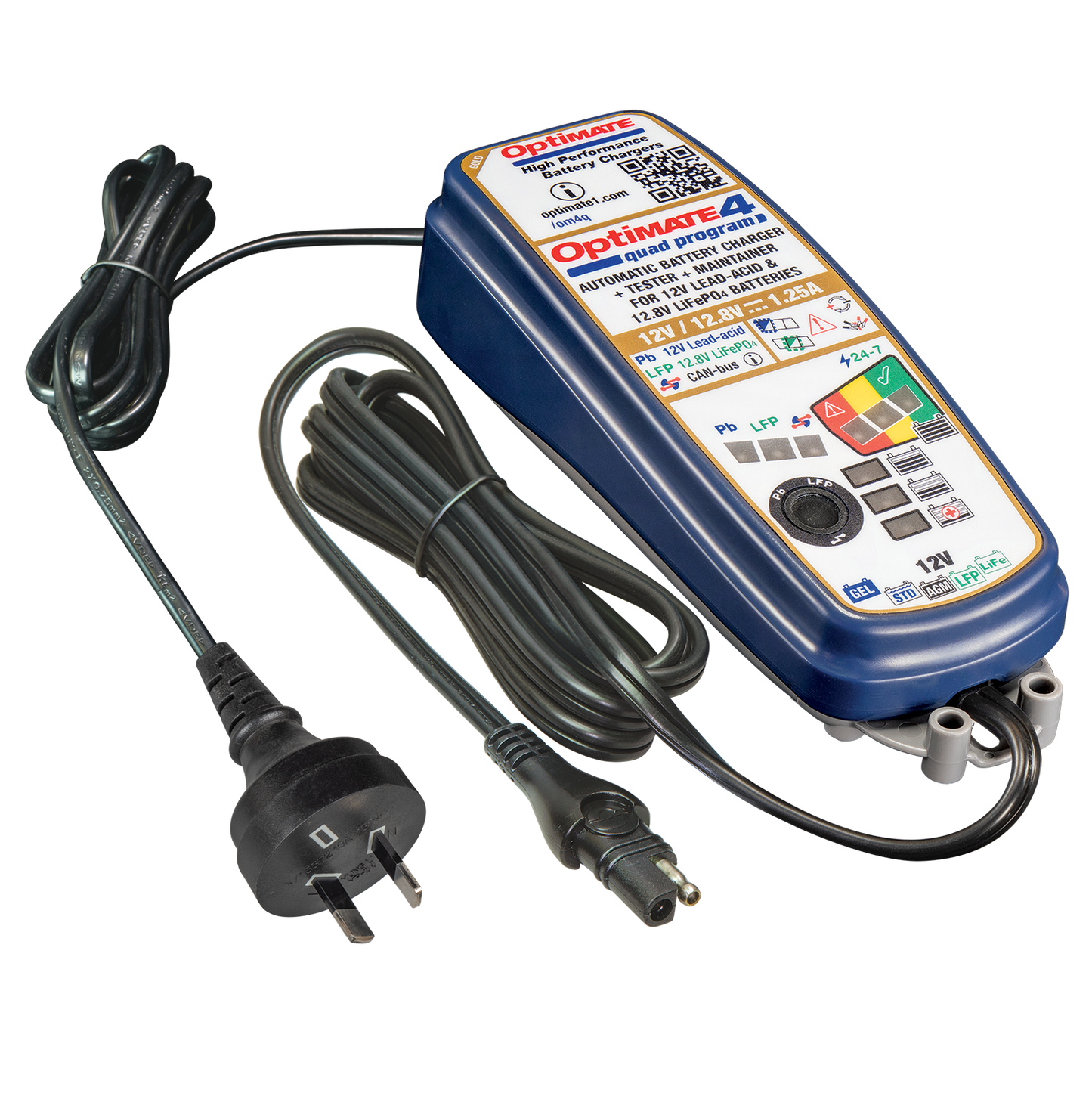

All Optimate chargers are fitted with AU mains plug from factory and meet all AU electrical product standards and marking requirements.

Download manual here :-

OptiMate 4 Quad Program Manual
