KAWASAKI PWC 3905015

Texa cable for Kawasaki PWC.

This KIT is needed to communicate with the KAWASAKI personal watercrafts.

The KIT includes two adapters, PWC1 (code 3905013) and PWC2 (code 3905014), which must be connected to specific connectors on the watercrafts and not to the diagnostic socket.

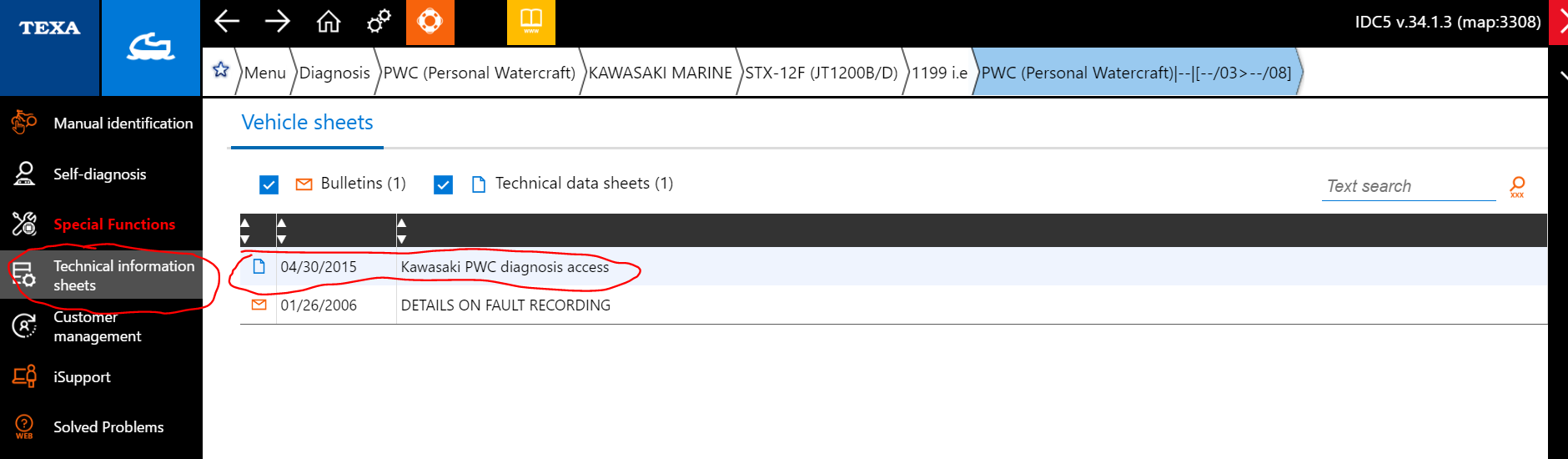

The use of the adapters depends on the model and year of manufacture of the vehicle. There is a technical sheet in the diagnostic software that includes a chart and a detailed guide on how to use these adapters. The sheet is associated to all the KAWASAKI MARINE vehicles.

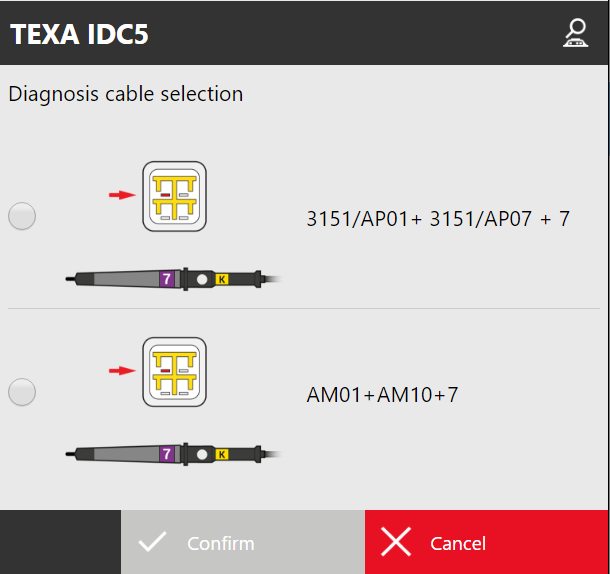

NOTE: this KIT is needed to access the communication but it does NOT serve as a diagnostic cable and it does not have to be connected to the diagnostic tool. The KIT must be used along with the diagnostic cable 3151/AP01 + 3151/AP07 + end sleeve 7 (bike software), or 3151/AM01 + 3151AM10 + end sleeve 7 (marine software).
