TXB Zero for Outboards and PWC's - Outboard diagnostic Software
TXB Zero with Texa Outboard diagnostic software is the new economical solution for marine mechanics working on Outboards and PWC's only.
For those working on outboards and pwc's this is the affordable solution you have been looking for.
Powered by the TEXA TXB Zero and Texa's Outboard diagnostic software, this is a fully functional diagnostic scan tool. It is geared towards the most common manufacturers you'll find in the industry:

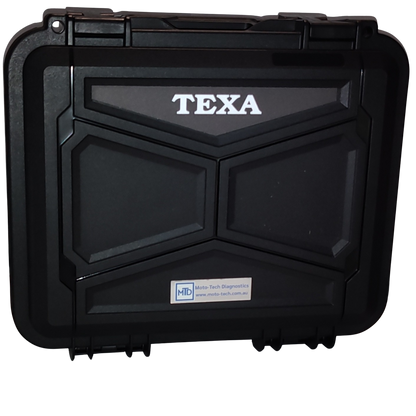

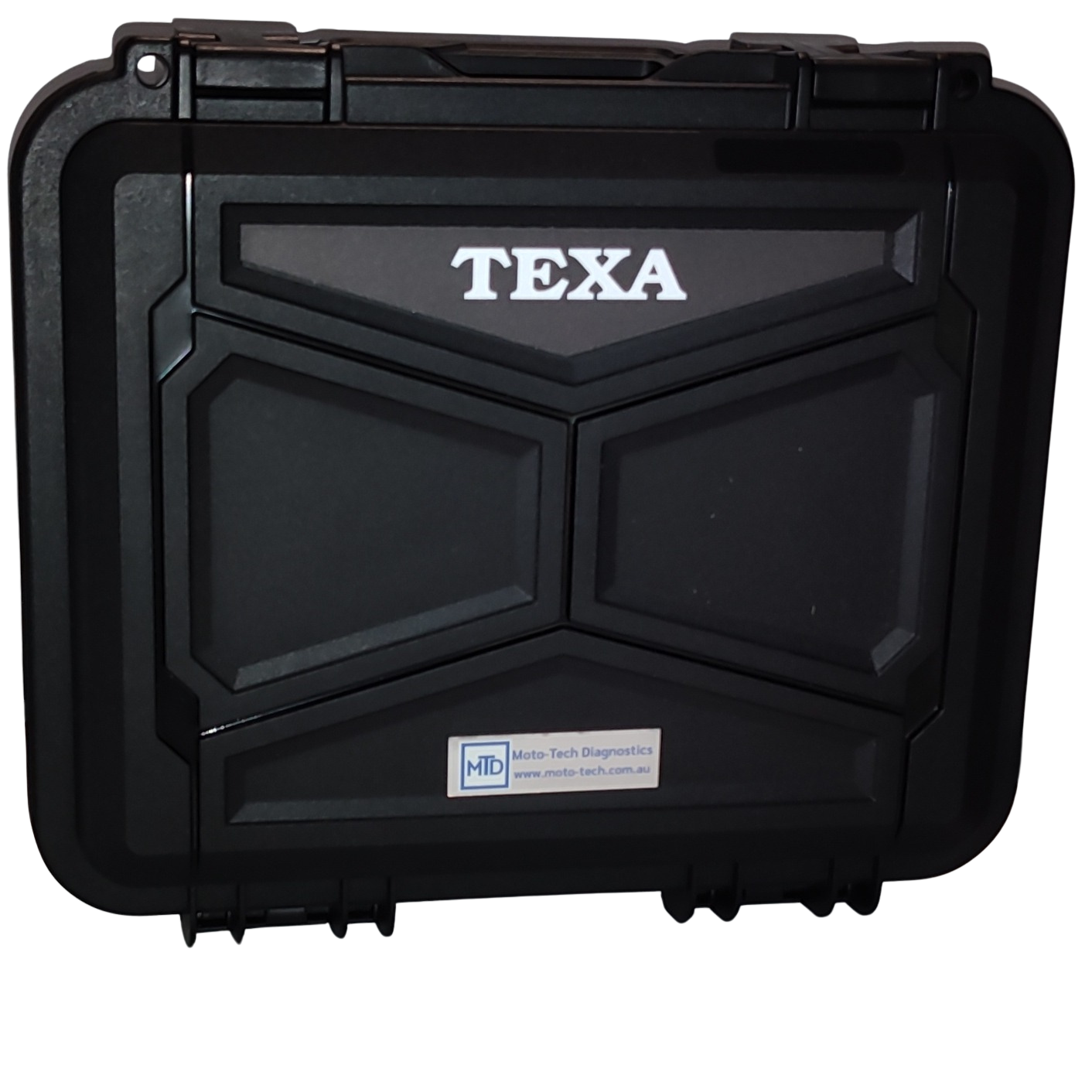

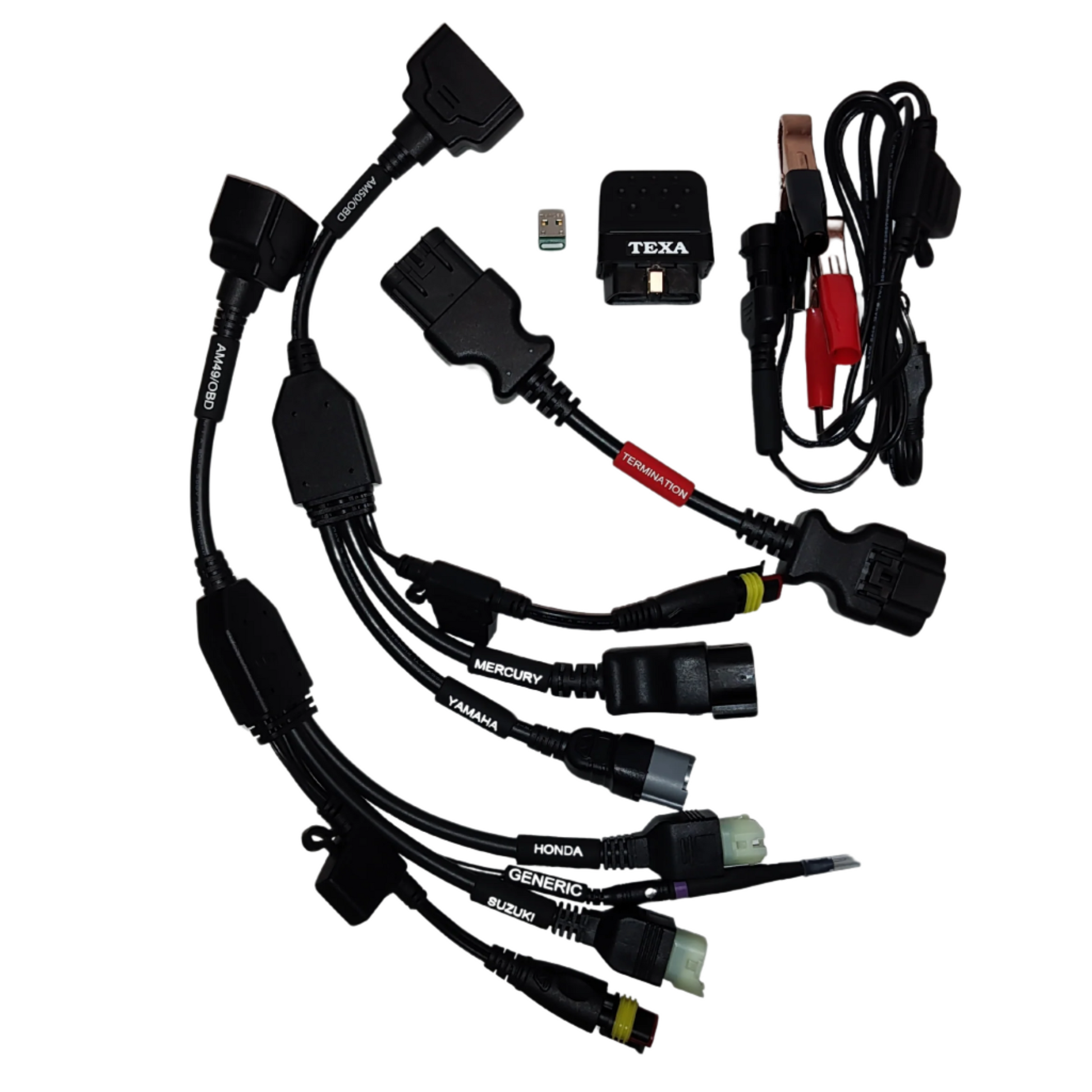

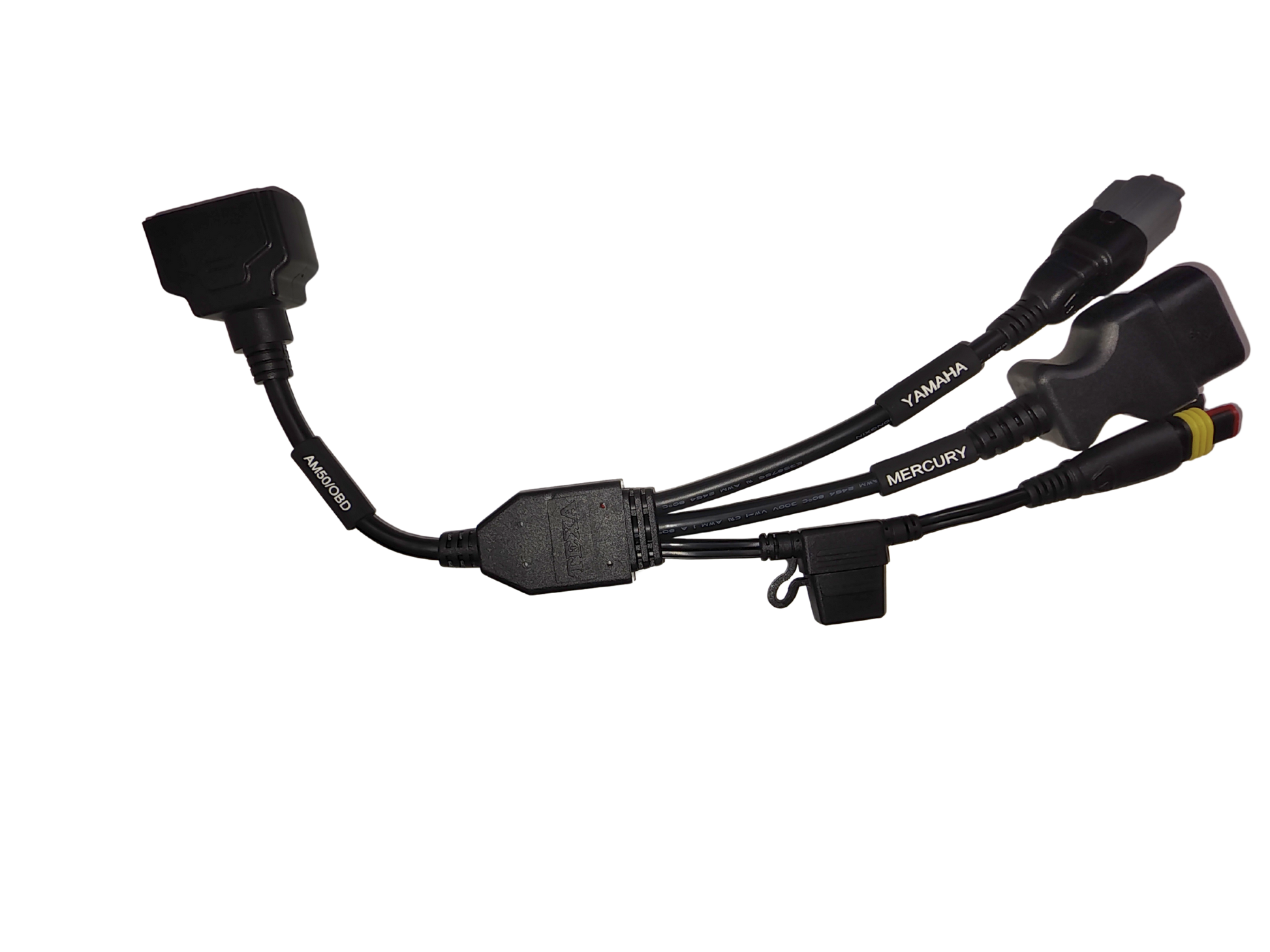

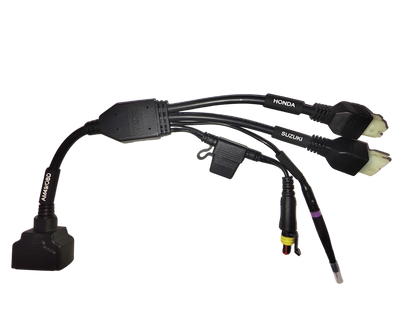

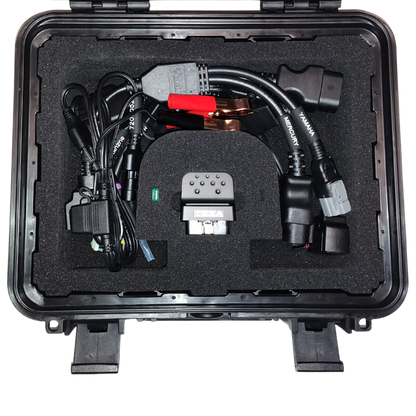

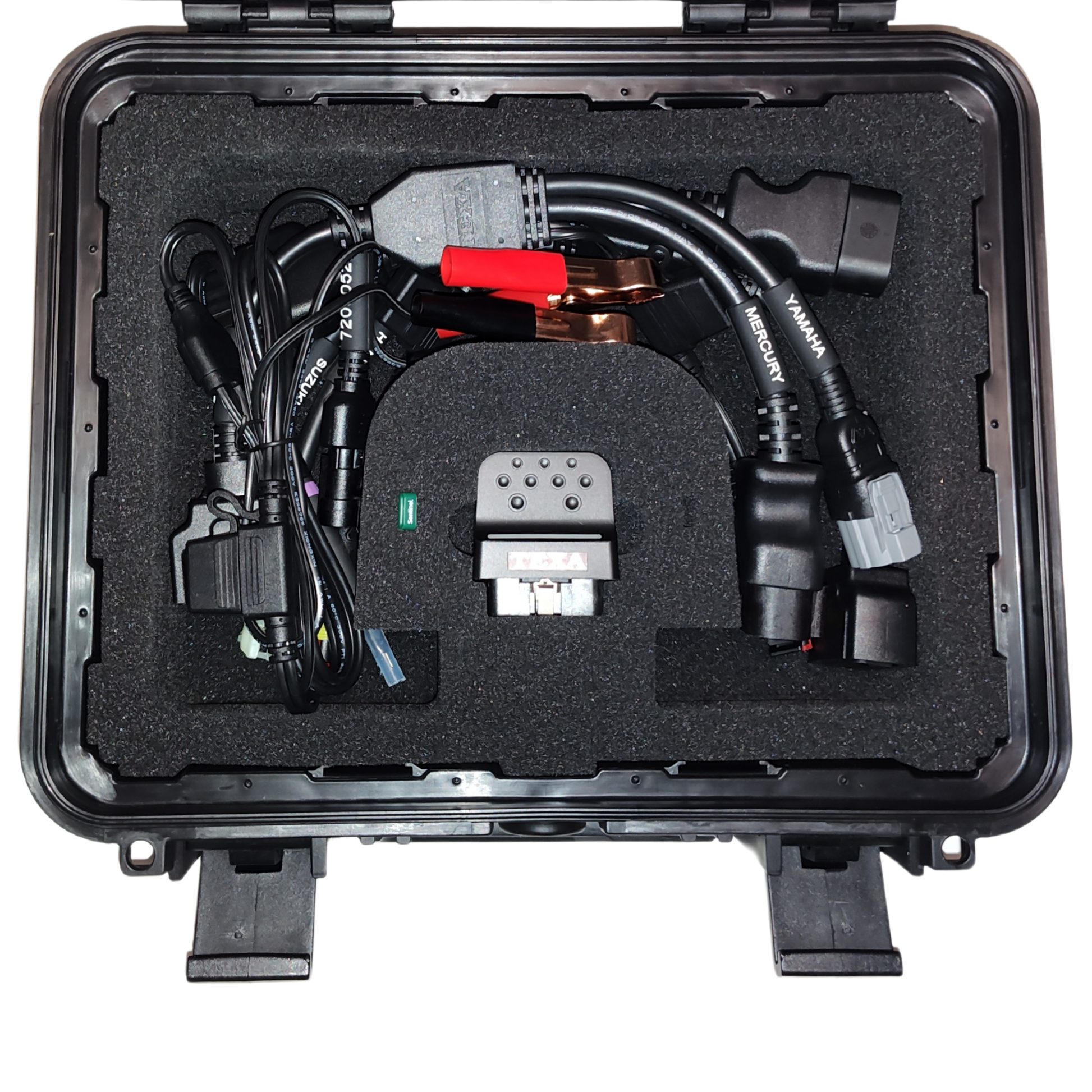

This kit includes Outboard diagnostic software, cables for outboard connections and a carry case to keep everything in one place.
Optional 12 Months updates subscription.
Optional tech sheets/bulletins subscription
Remote basic training and installation assistance is included
NOTE: This tool cannot be used with Inboard systems (except those listed below) - there is no upgrade option - please see TXB2 systems if you require that capability - also if you work on Evinrude's.
The Outboard diagnostic software also includes wiring diagrams, component locations, nominal values (Correct values of components), programming capabilities, code reading, and dealer level diagnostics.
Outboard Coverage (software and cables included)
Honda
Johnson
Mariner
Mercury (Models with CAN node diagnosis only)
Mercury Racing (Models with CAN node diagnosis only)
Nissan
Selva
Suzuki
Tohatsu
Yamaha
PWC Coverage (software and cables included)
Honda
Kawasaki
Yamaha
Inboard Coverage - wake boats, sports inboards (software and cables included)
IDC6 Windows Software to install on your Lap top PC. Your computer communicates either via USB cable or wirelessly via Bluetooth with the TXB 2 VCI.

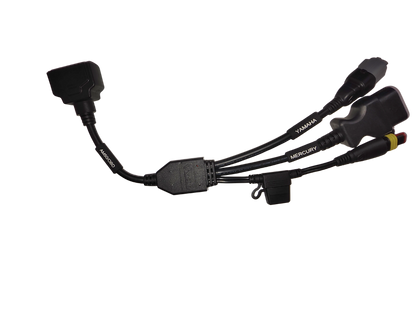

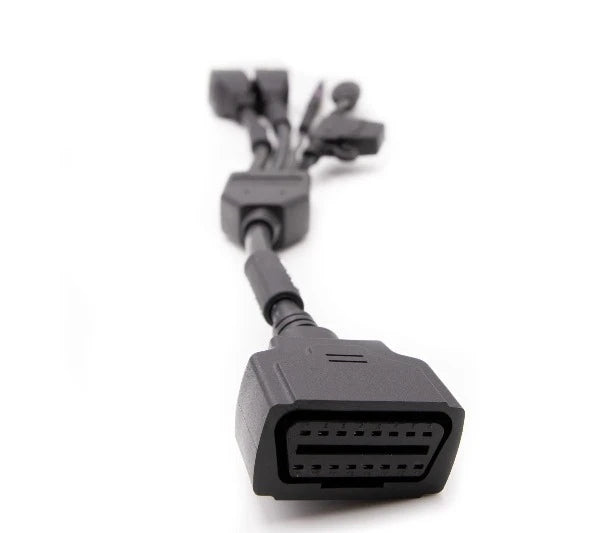

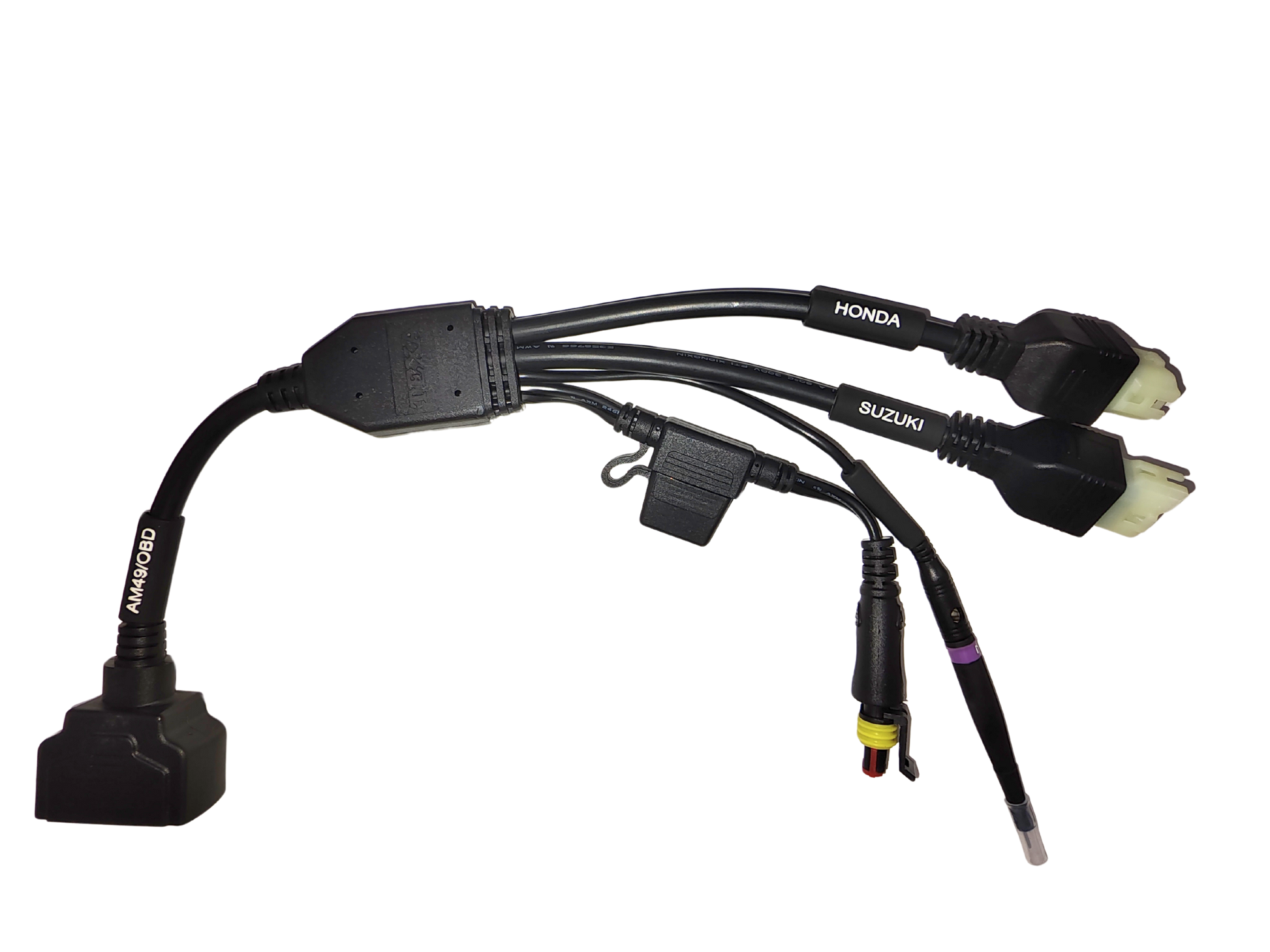

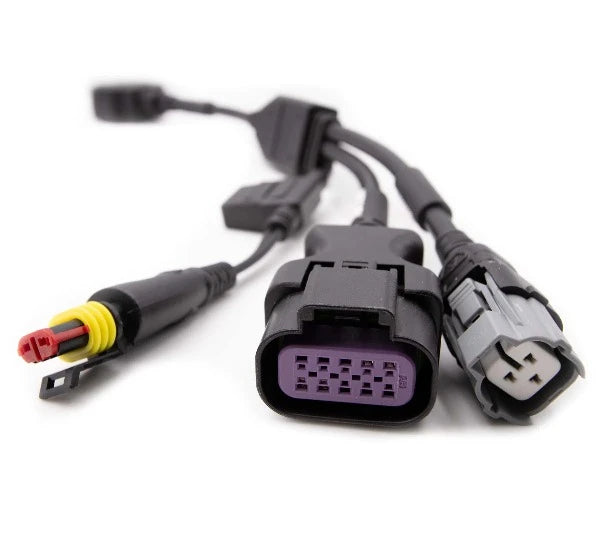

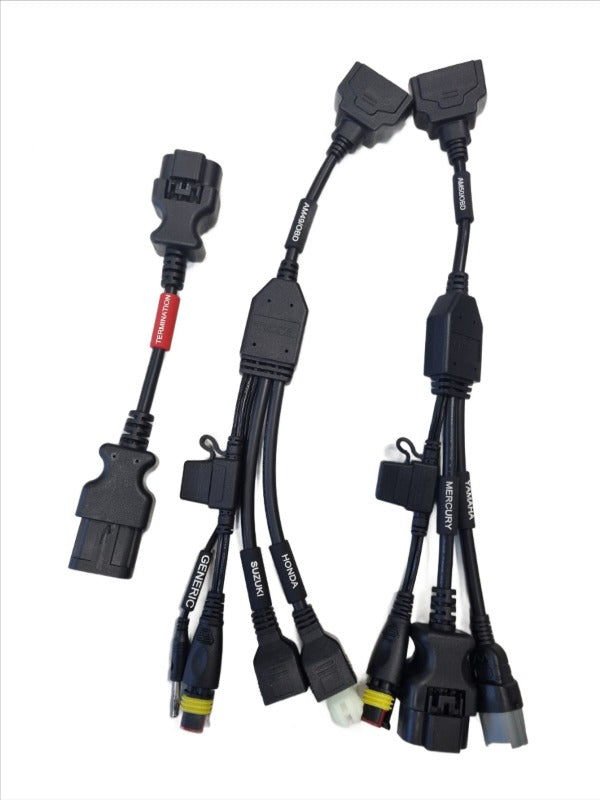

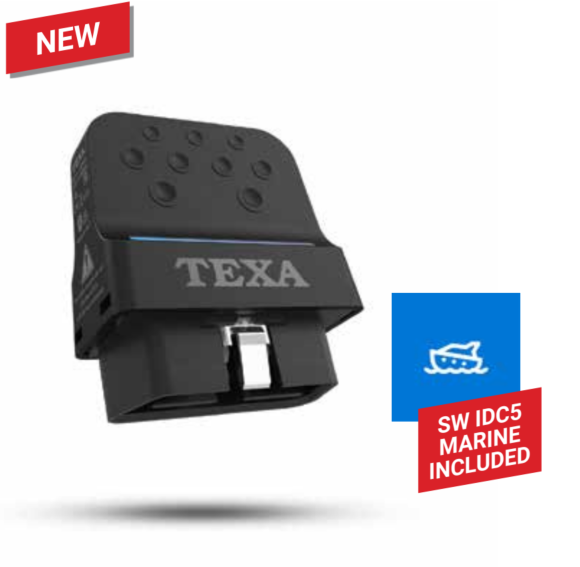

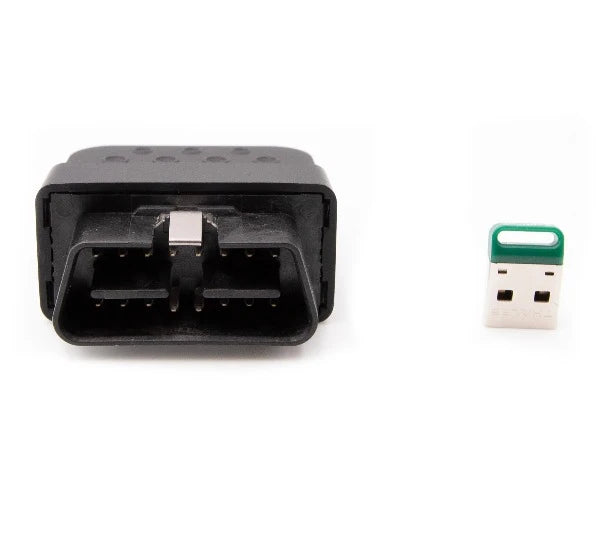

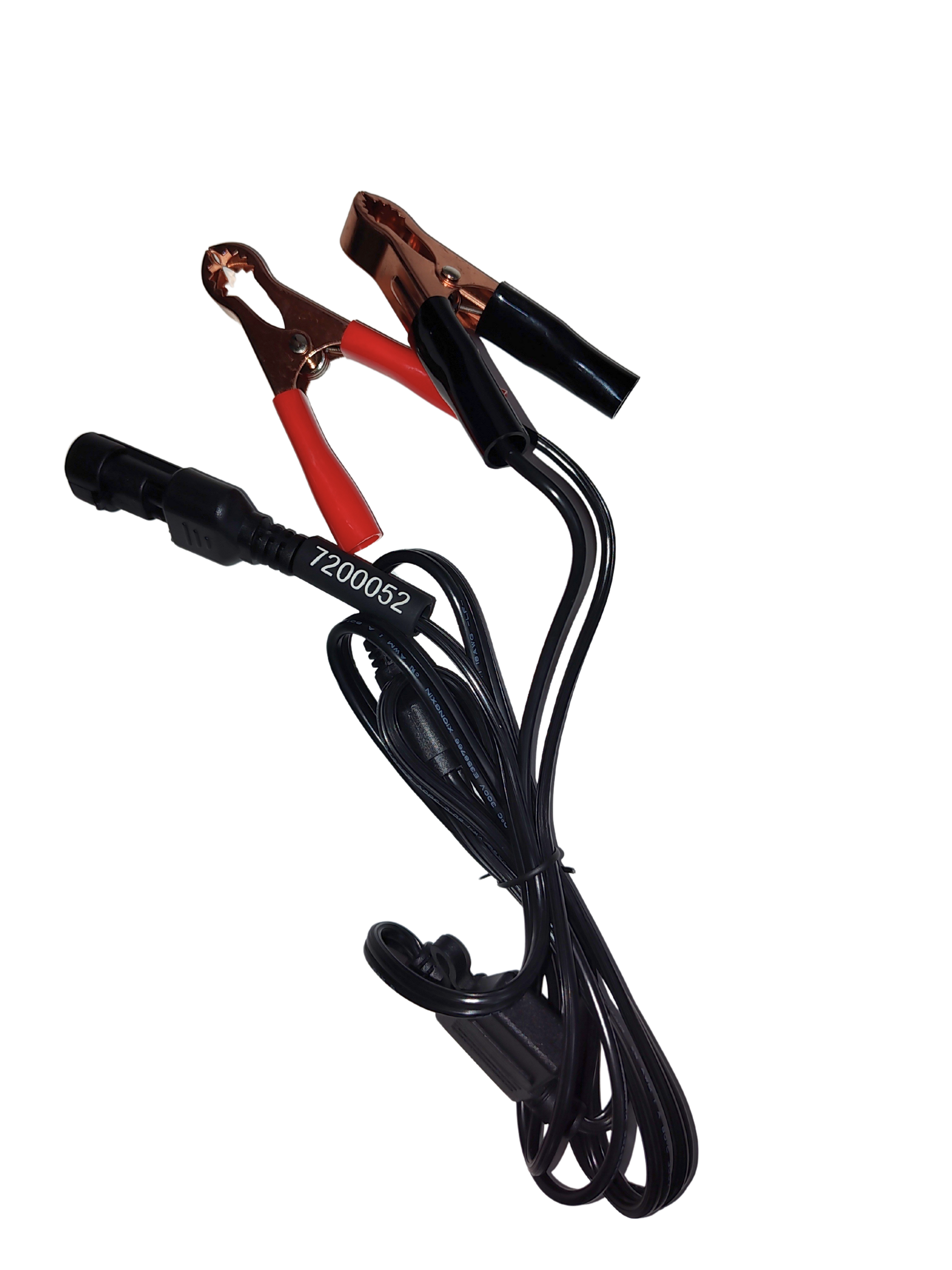

TXB ZERO VCI (vehicle communication Interface). Cables provide the connection between the TXB ZERO and your diagnostic connector on the system you are working with.

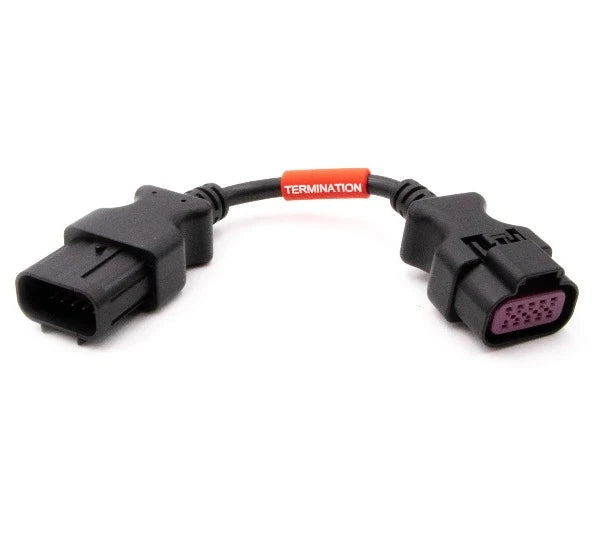

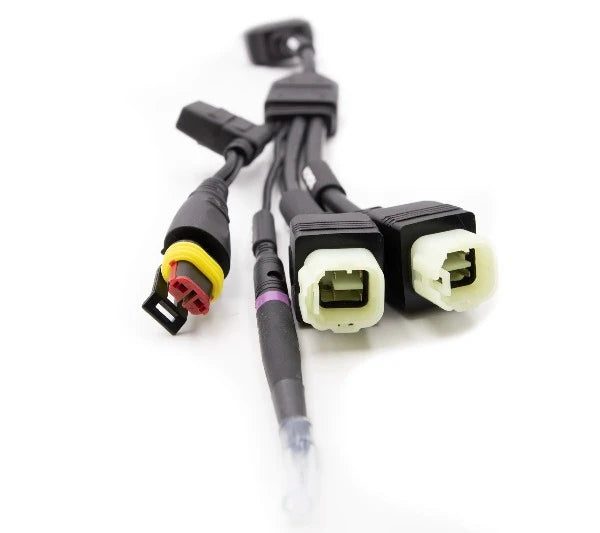

Cables are included.
We can discuss your needs by phone as this can be quite daunting with over 40 options.
Unfortunately the Marine world does not have a single OBD connector standard!
With our extensive experience in Texa products, we are able to provide our clients with the best backup and support when needed. Our team is equipped to provide software training and assistance remotely through the use of Team Viewer as well as telephone support, to ensure that our clients can fully utilize all of the features available within the software, such aswiring diagrams, component test procedures,data logging, customer database usage, print/save reports and more.
IDC6 Software
The IDC6 software is complete, practical and intuitive, extremely quick to access communication with motorcycles and rapid in all diagnostic phases, from the error identification to its solution.
Data Parameters
Here we can view all active parameters available from the system we are analyzing.
They can be viewed in numerical or graphical format. We can create filters, record live data static in the workshop OR during a water test.
Faults / codes and descriptions
Any present or memory faults are shown with codes and descriptions.
Freeze Frame Data
View data recorded by the ECU at the time a fault was generated.
Guided Diagnosis
Q. What is more useful than fault codes?
A. Tests to perform that allow you to prove / confirm if the component is actually faulty, or if the fault is elsewhere in the system.
Status Tab
Indicates position/status of switches, components, gear position, adaptations, sensors etc, etc.
Activations Tab
Here you can activate / live test components for correct operation and access engine history reports.
Settings Tab
Settings, calibrations and resets are found here.
Service Resets
Service reset - instructions for manual processes or functions for electronic processes.
Technical Data / Maintenance Schedules
Technical specification and maintenance schedules are available within the software. Additional model information is added with every update.
Special Functions
(Evinrude injector coding is only available with TXB2 packages)
Wiring Diagrams
Patented animated/interactive wiring diagrams create an intuitive map with the flow of input and output signals to/from the control units. Components can be listed by circuit with relevant cable color legend and component descriptions of operation.
Data / Client Reports
Texa is the Leader in the field of diagnostics
Texa is the leader in Fuel Injection Diagnostic Scan Tools. Many manufacturers have chosen the IDC5 multi-brand software and TEXA's VCIs as the official system (OEM) for their authorized service centers, for Marine this includes Selva Marine and Tohatsu Italia
We believe that this is a great advantage also for independent workshops and proof of the product quality.
Additional Resources
Check out ourYoutube channelfor tutorials and information videos! Like and subscribe to keep up to date with new videos. Also, ourFacebook pageis a convenient place to view updates and information about Texa products as well as our other items.
System Features
✔ Read and clear fault codes
✔ Component output tests
✔ Reset service reminders
✔ Component calibration
✔ View live sensor values
✔ Brake Bleeding
✔ Control unit information
✔ Wiring Diagrams
✔ Log and graph live values
✔ Nominal Values (component test data, voltages / Resistances etc)
✔ Log Road Test Data
✔ Save reports and client details
....and More!!
The Texa system is NOT a tuning system. We do not offer the ability to custom Map / Flash ECUs.
Please call us on 0405 548 757 to discuss your requirements, we can also answer any questions you may have and provide a remote demo using any preferred meeting/screen sharing program such as zoom, google meet, team viewer, anydesk etc etc.
PLEASE NOTE PC SPECS RECOMMENDED BELOW
IDC6 is compatible with the following Microsoft operating systems:
• Windows 10(22H2 19045.xxx or higher) • Windows 11
The operating systems: • Windows RT; • Windows 10 S; • Windows 10 LTSB 2015; • Windows 11 SE; • Windows Insider Preview builds; are not supported.
This software is not compatible with devices based on an ARM processor and equipped with a Windows operating system.
Requirements that are Common to All Supported Operating Systems
Requirement
Minimum
Recommended
Space on hard disk
7 GB
12 GB
RAM
8 GB
8 GB
System
64 bit
64 bit
Screen resolution
1024×768 pixel
–
USB ports (type A)
Yes 1
Yes 2
Internet connection
Yes
Yes
Bluetooth 4 or higher
No
Yes
Wi-Fi
No
Yes
We recommend installing the updates from Windows Update before proceeding with the Setup.
The request for space on the hard disk refers to a single diagnostic environment for its first installation. The recommended space takes into account the possibility to update the software to higher versions. The Internet connection is necessary (and mandatory) in order to access the on-line services, perform updates, etc. In order to optimise the use and reduce the risk of possible compatibility problems, we recommend that this software be installed on a PC that is dedicated exclusively to workshop use.
In order for the software to work properly, additional components must be installed on the PC. The application that manages the software download and installation will carry out a quick scan of the PC, checking which additional components must be installed. The number of additional components that must be installed varies depending on the operating system, the service pack, other previously installed environments/versions, etc. The installation of some additional components may require you to restart the system. The installation automatically resumes each time the system is restarted. The time required and the steps involved in the installation depend on the number and on the type of additional components that must be installed.
