The fully sealed in-line SAE to USB 3300mA charger with 200cm / 80″ of cable, delivers safe and fast USB charging to you phone or other device that needs charging, either on the handlebar or inside your tankbag or pannier– Charge cable routes to where USB charging is needed!
Connects to battery lead with OptiMate O-01 (NOT INCLUDED) SAE 2-pin connector – In-line seal makes 12V connection weatherproof!
Charges 1x USB device with up to 3300mA current available (or get optional O-110 USB splitter and charge 2 devices). – Charge current adapts to connected device for safe recharging.

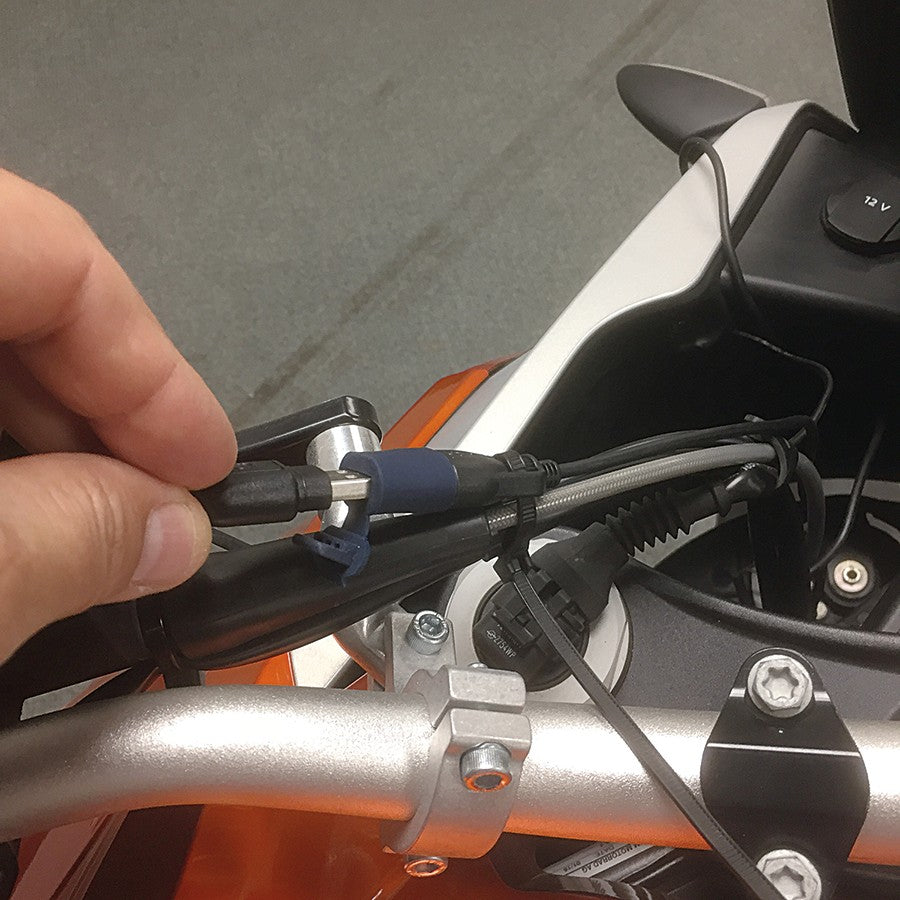

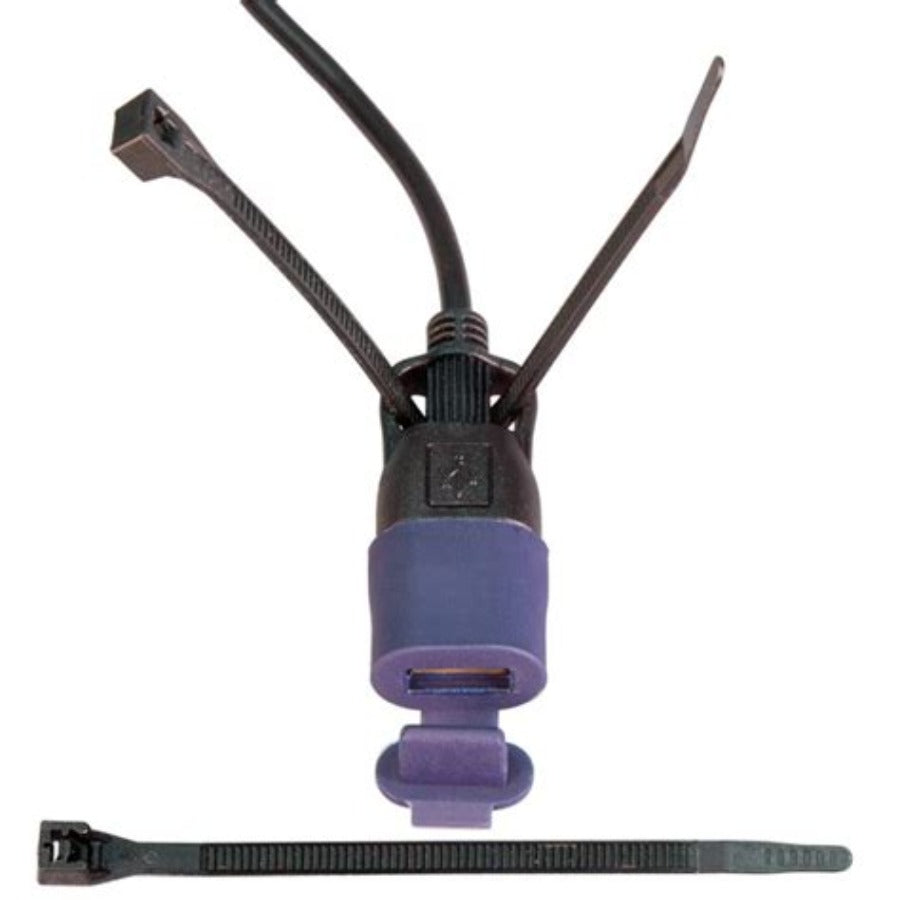

Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable – Seals against inserted USB cable for charging in any weather!
Built in protection turns off USB charging & prevents your parked vehicle’s LFP (LiFePO4) or AGM (Pb) battery from draining – Starts back up when vehicle engine fires up.
Monitors and displays parked vehicle’s battery status – Indicates battery is ‘start ready’ at the blink of an LED!
Smart 3300mA USB charger, with standby mode & vehicle battery monitor.
Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80″ / 200cm away from 12V supply.
LENGTH:80″ / 200cm
CHARGE CONNECTOR (INPUT):2-pin SAE
POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.
CHARGE CONNECTOR (OUTPUT):1x USB
POWER (OUTPUT):3300mA @ 5V
OPERATION: fully automatic
Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc.
Turns on if vehicle battery voltage increases above 13.3V.
2 LED battery monitor
Short circuit, overheat, over-voltage protection.
OPERATION (Voltage)
USB ON – 13.3V to 18V – unlimited USB output, USB LED on. Delivers USB power when vehicle engine is charging battery.

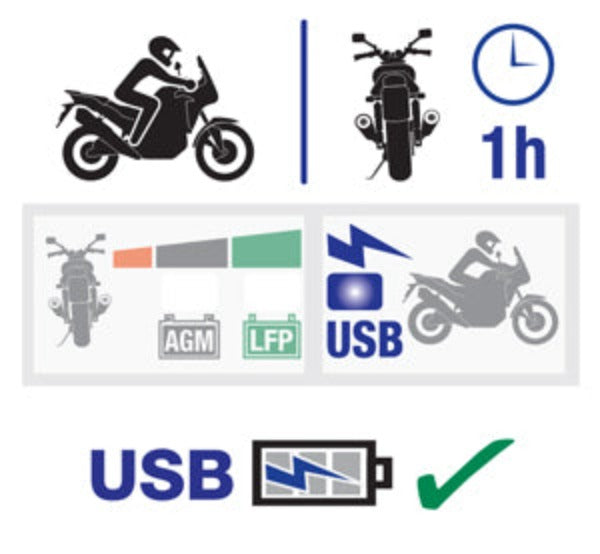

USB 1 HOUR – 12.4V to 13.3V – 1 hour USB output, USB LED on. Go to standby mode after 1 hour or voltage < 12.4V.
STANDBY MODE – Monitoring voltage, turns back on if vehicle battery voltage increases above 13.3V.

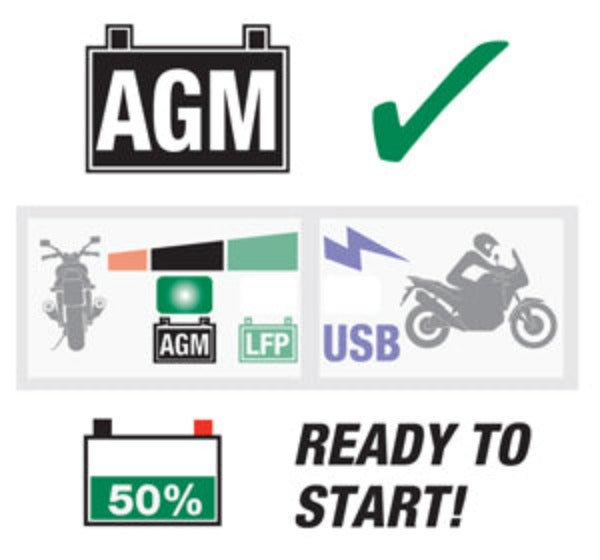

AGM / LFP MONITOR – LED blink every 5 seconds if battery charge ≥ 50% , sufficient to start vehicle engine.

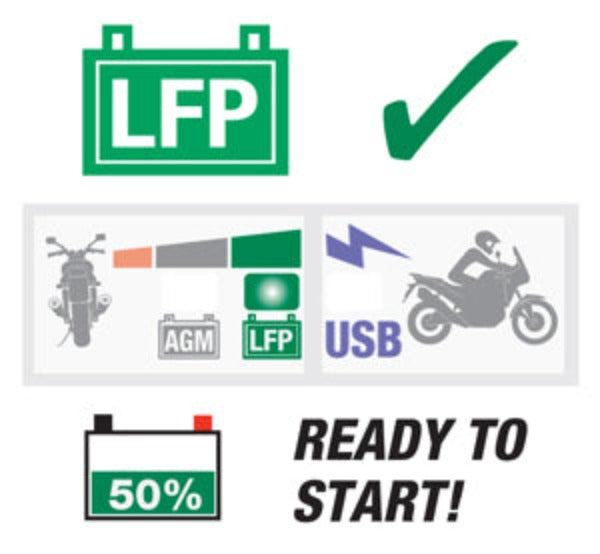

LED LFP: 13.1V to 13.3V.
LED AGM: 12.4V to 13.1V.
NO LED < 12.4V.
OFF ≤ 9V
CABLE RATING:SPT-1
USE:-20°C/-4°F very low temperature, remains flexible at ‘below freezing’ temperatures
STYLE:Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket ; use any USB cable, seals when inserted.
I have a ram mount on my street triple r for my phone and this charger is awesome, with the 1 amp feed i can use the phone as a GPS, listen to music through my Senna headset all day long and never ever worry about it not keeping up.
M
Michael (.N.
Does what it says on the box
Was planning a trip over several days, bought one of these to charge my phone and head set. 1 amp output means it charges anything. Lots of cable included. Well made, and the auto cut off under certain voltage is a great feature.
B
Baz
iPhone charger for the Ducati
Great little gadget for charging IPhone, Go Pro or whatever. Good value for money as well
M
Matt
Great for touring
Used this on a 7 day trip from brisbane to sydney and back. Great product; kept my phone, gps, gopro charged at all times when i need it, without having to stop at some place to use a wall socket. Also, its a great thing that it continues to charge devices while the bike is off, until the battery reaches 12.4V. Which is sufficient to start the bike again.
W
Wayne
even I managed to use it as it's so simple
purchased a unit as frustrating when phone or mp3 goes flat when needed, my wife "borrowed" mine so I bought another, does everything it says it will, in this day and age you need it
