Belt Tension Tester
$660.00
$660.00
Tax included. Shipping calculated at checkout.
Availability: Low stock: 1 left
SKU: D088A0
Belt Tension Tester - Moto-Tech Diagnostics
$660.00
$660.00

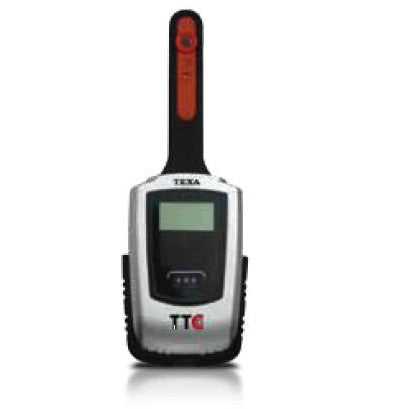

TTC (Texa Tension Controller) from Texa.

As used by Ducati Dealers worldwide!

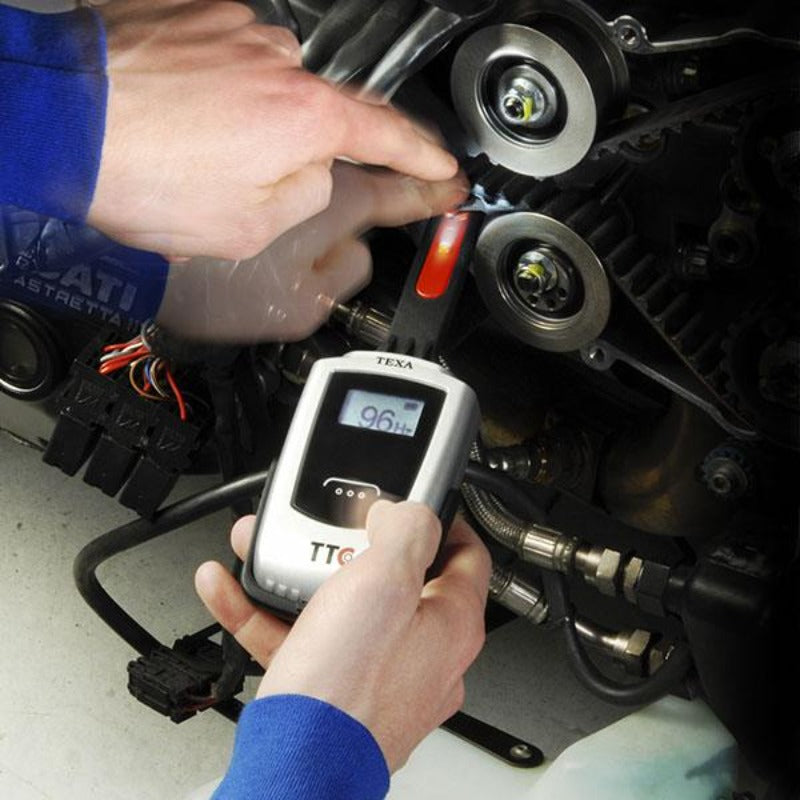

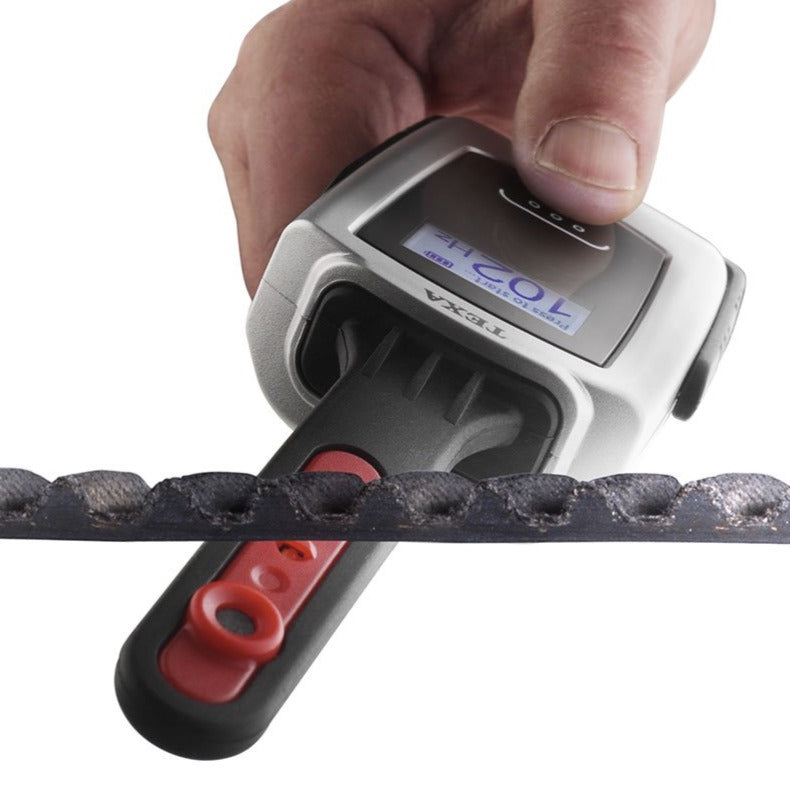

TTC is a new universal belt frequency tester for checking correct cam belt tension frequency and can be used with all belt types and all vehicle types.

Using a sensitive microphone the resonance frequency is tested to ensure correct belt tension is set according to manufacturer spec.

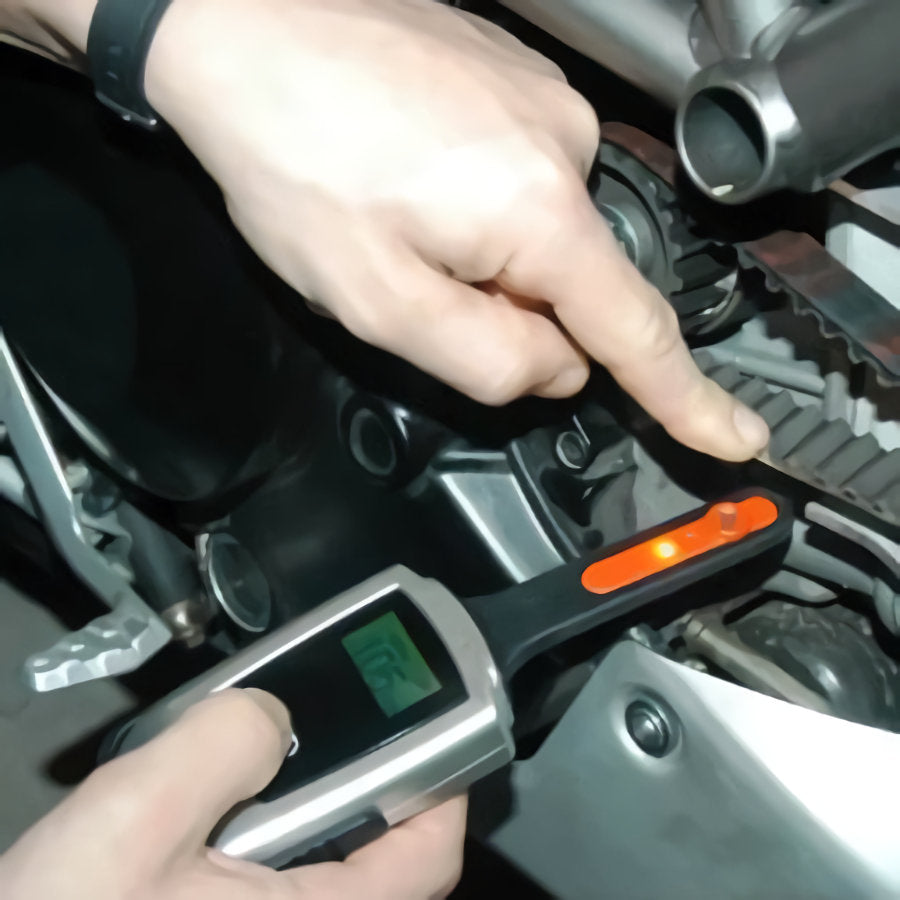

Unlike other tools, the microphone is mounted to the tool, leaving your other hand free to strum the belt for testing.

No need to mount the mic on the head or have someone else help you!

The test result is displayed to the user also emitting a beep once the measurement is completed.

Technical Specifications


MICRO CONTROLLER
ARM 32 bit

DISPLAY
Backlit LCD

INTERNAL BATTERY
3.7 V 1000 ma/h li-io

RECHARGE
from USB port, max consumption 470 mA

RANGE
6 hours of continuous operation

RESOLUTION
3 Hz

ACCURACY
± 1,5 Hz

ENVIRONMENTAL
Operating temperature: – 10 °C ÷ 40 °C
Stocking temperature: – 20 °C ÷ 60 °C
Temperature with battery under charge: 0 °C ÷ 45 °C

Storage and operation moisture: 10 % ÷ 80 % without condensation

DIMENSIONS
202,7×70,6×31,3 mm

WEIGHT
300 g

Manufacturer Part Number: D088A0
