Tyre Pressure Sensor Tool - TPS2
$1,300.00
$1,450.00 $1,300.00
Save $150.00
Tax included. Shipping calculated at checkout.
Availability: Out of stock
SKU: TPS2
Tyre Pressure Sensor Tool - TPS2 - Moto-Tech Diagnostics
$1,300.00
$1,450.00 $1,300.00

Texa TPS2


The TPS 2 can be partnered with your IDC5 software, or used as a stand alone system.

What is it for?

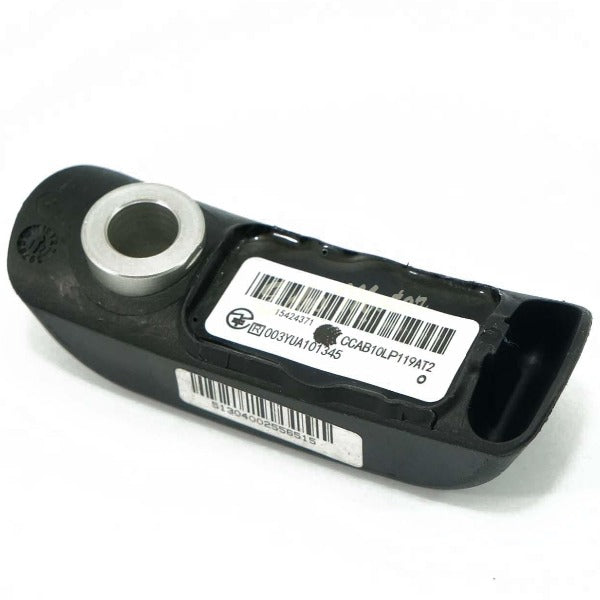

When replacing tyre pressure sensors, often the new sensor needs to be "woken up" to allow the ecu to read and save the new ID code.

In some instances, the ecu will auto register once you have entered the ID and then test ride the vehicle so the TPS2 system is not always required.

You may even be able to "trick" the tyre pressure sensor into waking up by deflating the tyre manually, triggering the sensor to 'wake up" and transmit to the ecu.

Before fitting new sensors, ALWAYS note your ID codes for the new sensors if supplied.

Please check manufacturer information with regard to specific models or brands.

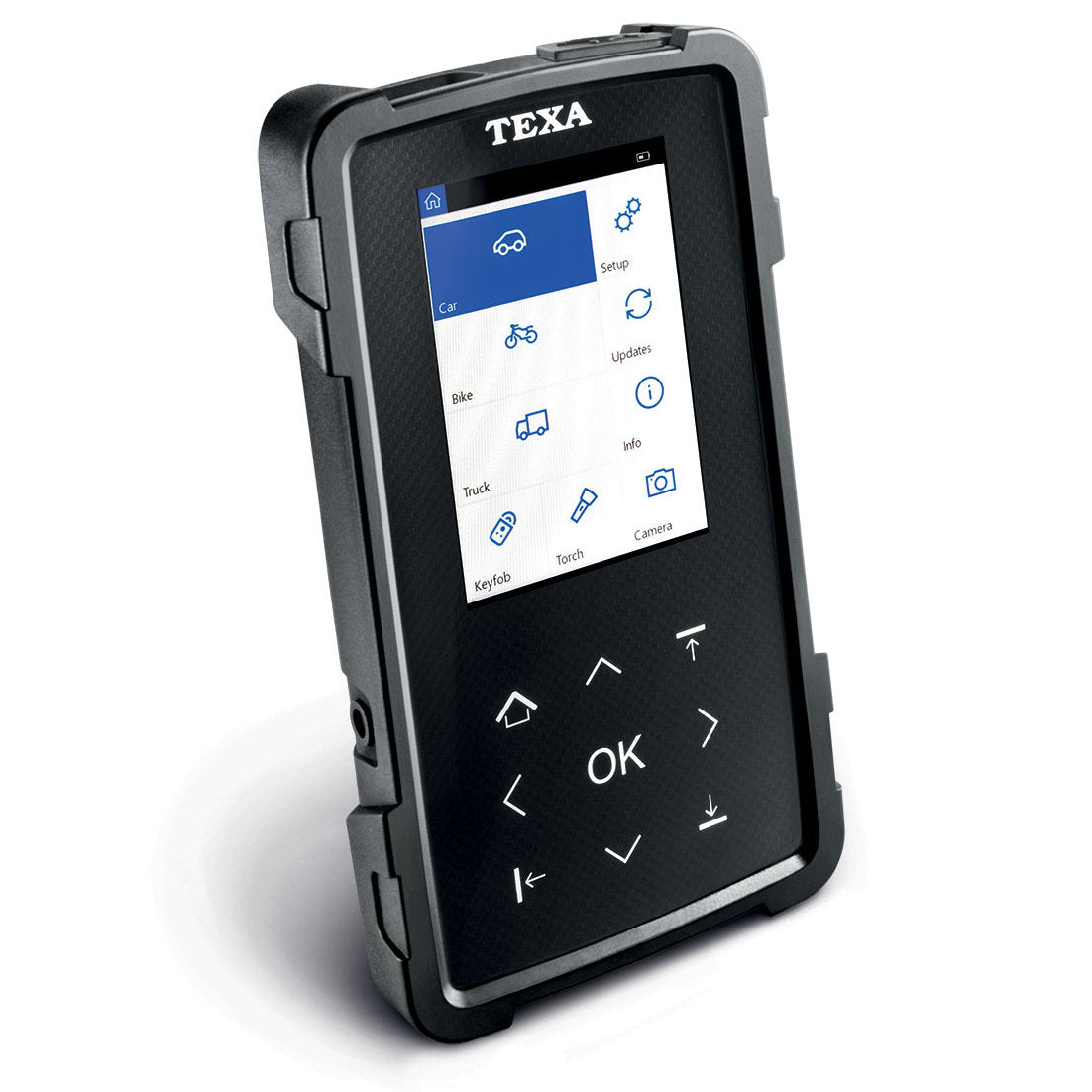

TPS2 is a new tool from TEXA that offers tyre fitters all the functions they need and guarantees complete reliability in use.

Engineered to dialogue quickly and easily even with sensors that require particularly high power, especially during activation.


TPS2 is robust, fast, simple to use, and features a display large enough to let you view all the information you need on a single screen. This unique combination of features makes TPS2 the top tool for TPMS work.

TPS2 comes with 8 GB of internal memory that can be used to save and load reports on the work done on customers’ vehicles and also to ensure the efficient management of seasonal tire changes.


The tool can communicate with sensors in two ways: manual selection and TWS2, the latest development of TEXA’s TWS function, faster and more effective than ever.

 Special Order item.

TECHNICAL SPECIFICATIONS


Processor: Cortex M7
Memory: RAM 8 MB
Flash 4 GB

Display: LCD IPS 3,5" 480x320
Camera: 5 MP autofocus; flash LED
Transmission frequency: 125 kHz
Reception frequencies: 315 MHz - 433 MHz - 434 MHz

Cable communication: USB
Wireless communication: Class 2 dual mode Bluetooth with built-in antenna.
WiFi 802.11 b/g
Battery: Li-ion 2500 mAh - 3,7 V
Autonomy: approximately 10 hours
Consumption: USB connector 500 mA max
Charge: approximately 5 hours with the device switched off
External charger: USB 230 5 Vdc 1,2 Adc

Operating temperature: - 10 °C ÷ 45 °C
Storage temperature: - 20 °C ÷ 60 °C
Temperature while charging: 0 °C ÷ 45 °C
Storage and operation moisture: 10% ÷ 80% without condensation
Weight: 300 g
