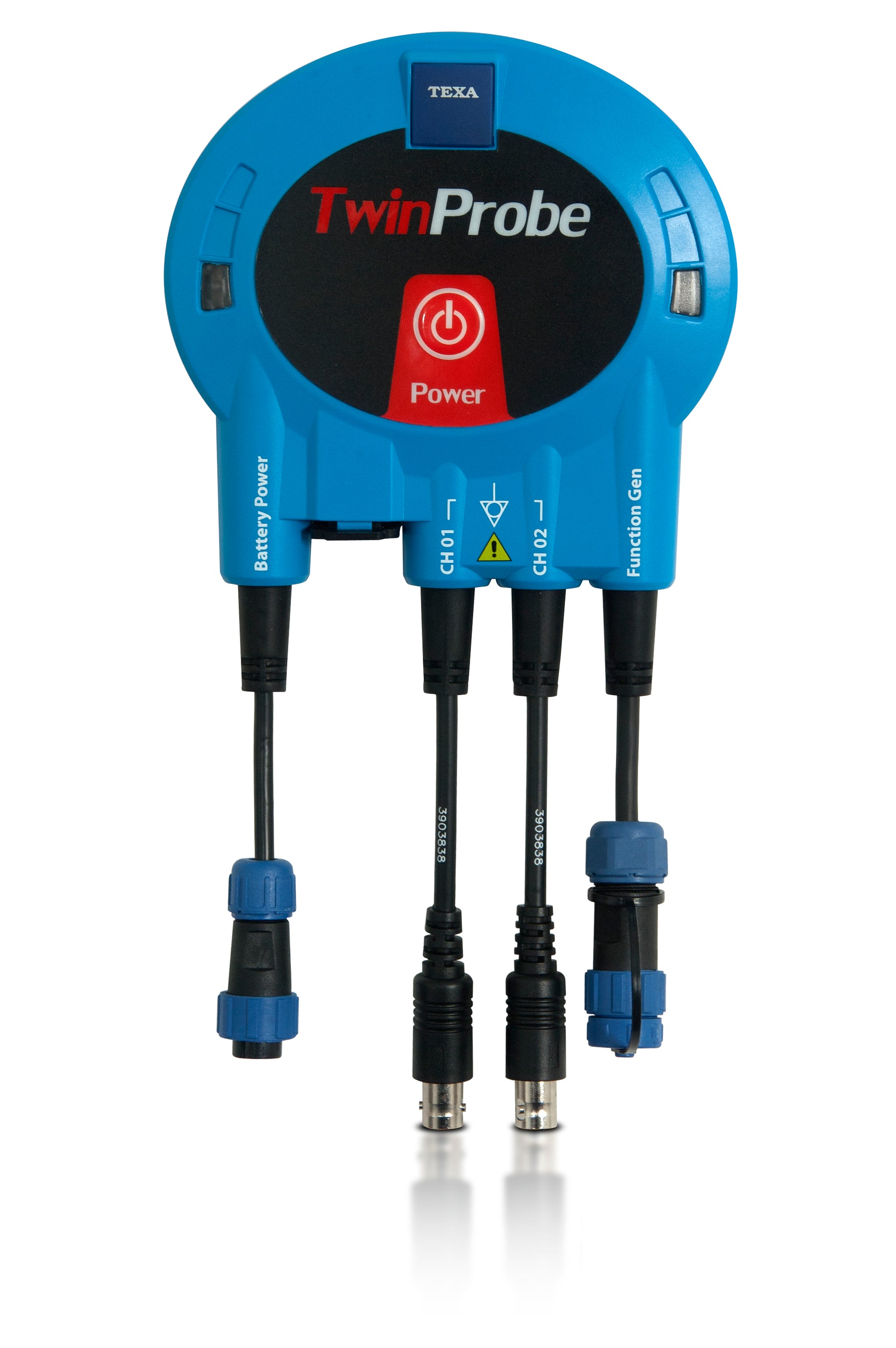

Texa

TwinProbe

TwinProbe

Regular price $1,700.00 AUD
Regular price Special Offer Price! $1,700.00 AUD
Special offer! Sold out
Tax included. Shipping calculated at checkout pior to payment.

Call for more details and price options.

TwinProbe is a perfect addition to the toolbox. Combined with Texa IDC5 software, it can be used as an even more powerful aid in fault diagnosis.

Price includes sensor simulator cable (o-5V) and electrovalve cable to power relays, coils etc.

 TwinProbe combines an accessible price with the practicality of a wireless tool and includes:

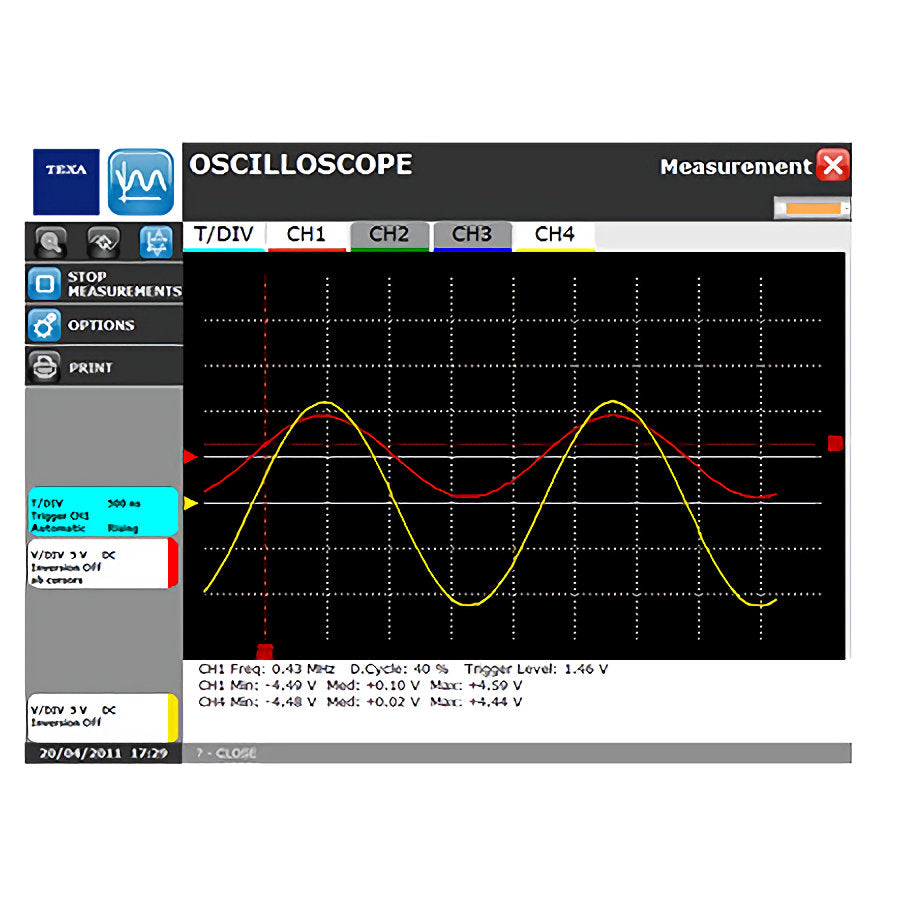

• Oscilloscope
Two independent analogue channels with inputs up to ± 200V, with SIV function for interpreting the signal detected.
• Signal generator
To simulate the signals produced by the sensors and command impulses sent by the ECU for the control, for example, of solenoid valves.
• Ammeter
To measure the current intensity. To carry out this test, TwinProbe must be combined with optional amp meter pliers.

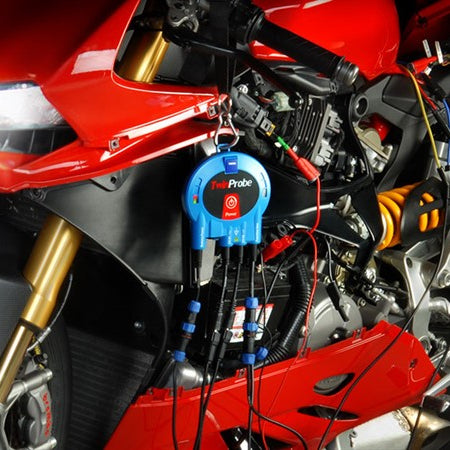

TwinProbe communicates with all TEXA viewing units or with a Windows PC with USB connection or through Bluetooth technology, allowing the mechanic absolute freedom of movement around the vehicle and in the workshop. They are also fitted with an interior lithium battery that can guarantee exceptional autonomy.

TwinProbe reflects the TEXA philosophy on "two unit solutions" to the full, looking to completely eliminate wires within the workshop.

For those not having and not wishing to acquire the complete operative platform IDC4, MSS (Measurement System Software) is in any case available, specific for TwinProbe, which enables only the functions of oscilloscope and signal generator in manual mode.

We should mention the SIV (Signal Information Viewing) function, a software algorithm that has been specifically developed by TEXA and which compares the data acquired with that in the internal database, immediately showing up any signal anomalies and thereby greatly facilitating the vehicle repairer's work.

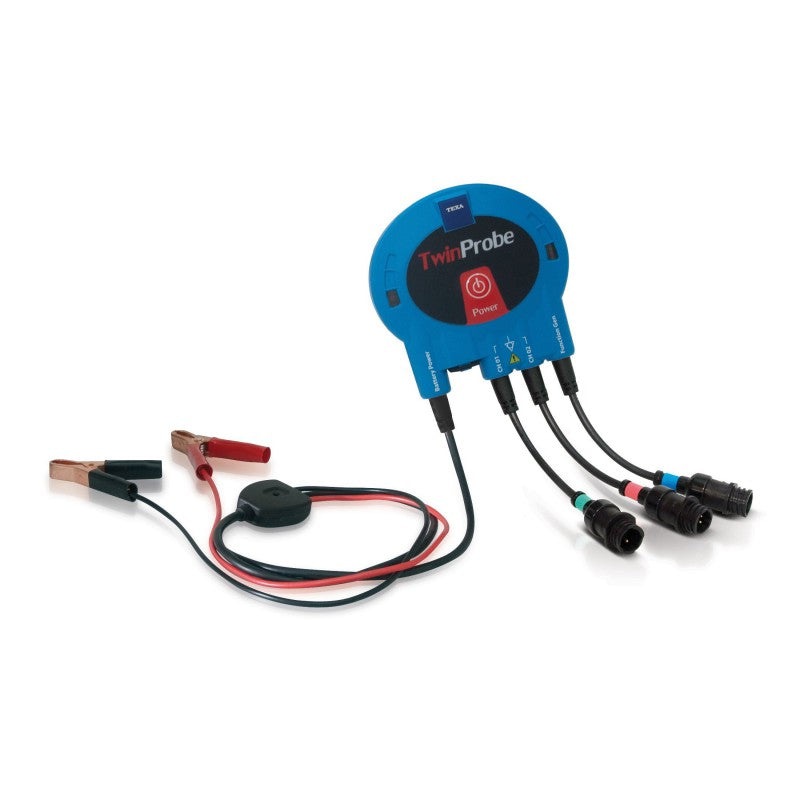

TwinProbe is delivered with a range of standard piercing probes and crocodile clips.

Optional accessories include:-

3903843 Electrovalve cable for twin probe (to activate coils,relays etc)
3903844 sensor cable for twin probe (to simulate 0-5v sensors)

402/2 Inductive clamp 0-400A
404/2 Inductive clamp 0-30A



TwinProbe Specifications:-

Power supply: 5 - 32 VDC
Power supply and recharge also from USB
Internal battery: 3,7 V, 1 Ah
Battery autonomy: 2 hours
Maximum current draw: 400 mA at 12 V
Operating temperature: 0/+45°C
Storage temperature: -20/+60°C
Dimensions and weight: 155x178x55 mm (excluding Bluetooth antenna), 1.2 Kg
Integrated Bluetooth antenna

OSCILLOSCOPE
Channels: 2 independent input channels with analogue bandwidth of 10 MHz (-3 dB); sampling rate 40MSamples/sec at 10 bit with 1 channel active, 20 MSamples/sec at 10 bit with 2 channels active
Max input voltage: +/- 250 Vmax, AC or DC coupling
Vertical scale for each channel: from 20 mV/Div to 100 V/Div
Horizontal scale: from 250 mV/Div to 50 s/Div
Trigger: source CH1, CH2

Current measurements
Current measurements performed by connecting TEXA “BICOR” series probes
